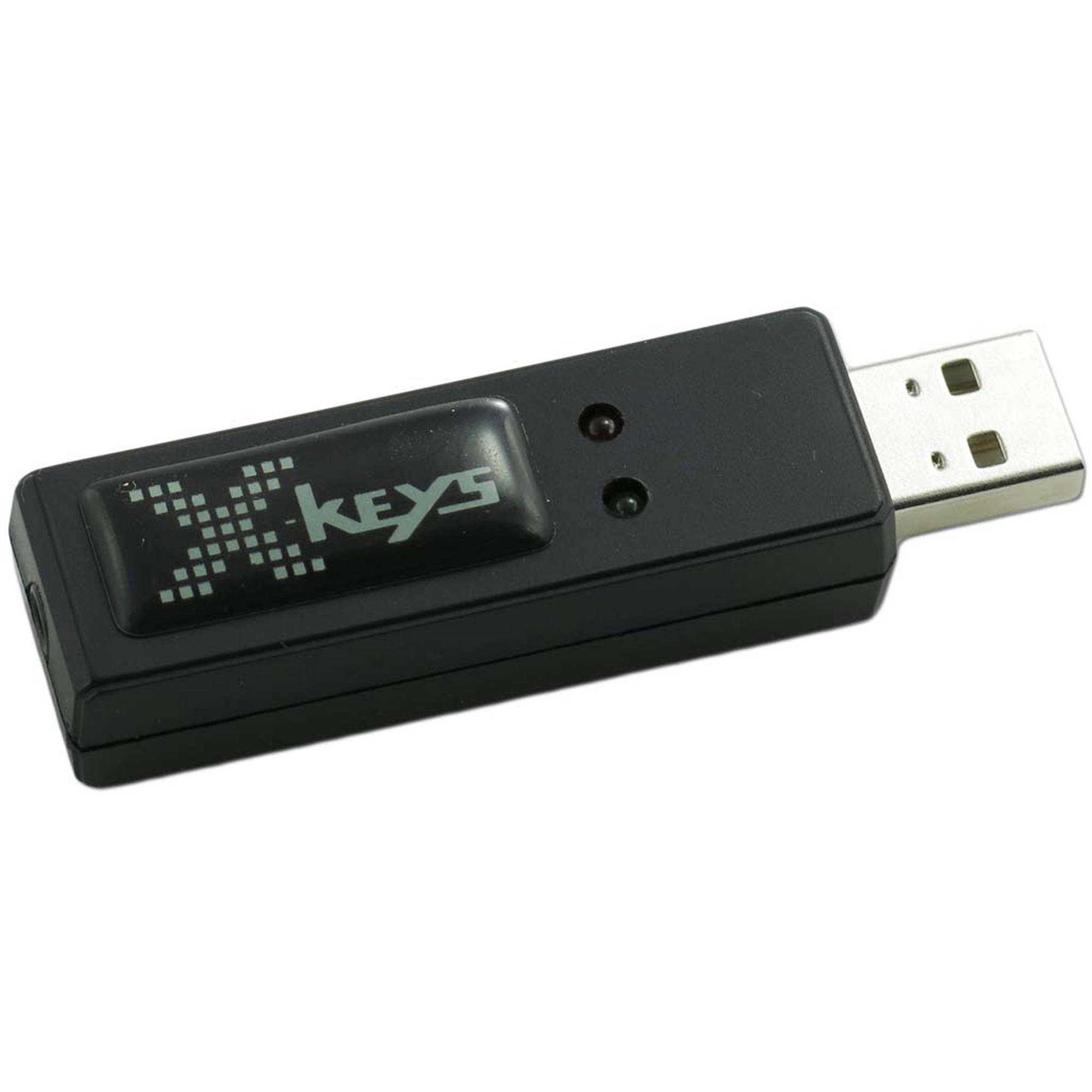

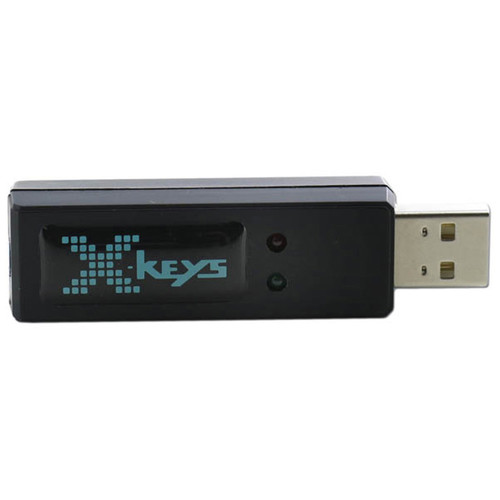

The small, versatile USB Three-Switch Interface from X-keys is capable of supporting up to three wired switches or pedals using an optional adapter (sold separately). The USB interface comes equipped with a single USB connector and a single 3.5 mm jack which supports a variety of USB codecs including HID keyboard, HID mouse, HID game controller, and HID multimedia.
Description
Additional information
| Weight | 0.2 lbs |
|---|---|
| Dimensions | 7.32 × 5.43 × 1.73 in |
| Operating system | Any OS via USB HID, Programming: Windows XP through 8, Mac OS X 10.4 through 10.10 |
| Programming Software | Windows: MacroWorks 3.1 <BR /> |
| Software Development Kits | Windows (C++, C#, VB.NET)<BR /> |

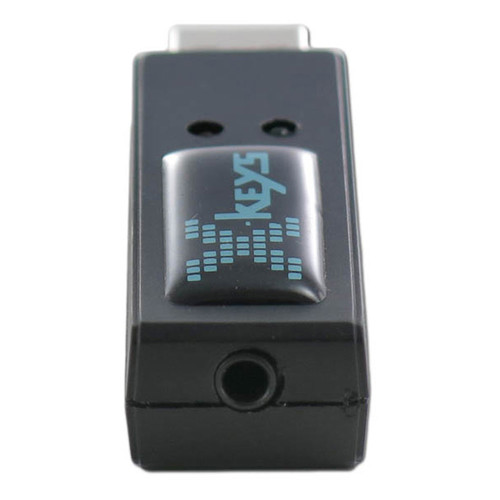

| Ports | 1x 3.5mm TRRS (Tip-Ring-Ring-Sleeve) accepts 3.5mm mono, stereo, or TRRS plug; May be split to accept up to three switches<BR /> |
| Connector | USB 2.0 standard "A" plug<BR /> |
| Wiring Distance | Up to 1, 000' (300 m) from switch to port |
| Memory | Memory Capacity: Approximately 1000 keystrokes or commands<BR /> |
| Power | Power Source: USB port, nominal voltage = 5 VDC<BR /> |
| Environmental | Temperature Range: -4 to 140°F / -20 to 60°C<BR /> |
| Certification | FCC class B, CE, RoHS, WEEE compliant |
