The Ubiquiti Networks AirMAX Omni 2×2 Dual Polarity MIMO Antenna is designed to be compatible with an optional Rocket M BaseStation to deliver 360° wireless networking. This dual-polarity antenna operates under the 3 GHz frequency and offers a gain of 12 dBi. It delivers 2×2 MIMO performance and supports airMAX technology, which uses a Time Division Multiple Access protocol to send and receive data at pre-designated time slots. Ubiquiti has outfitted the antenna with a robust mechanical design that helps ensure outdoor survivability. Included along with the antenna are a pole mount kit, Rocket M bracket, and weatherproof RF jumpers to make your base station building experience easier.

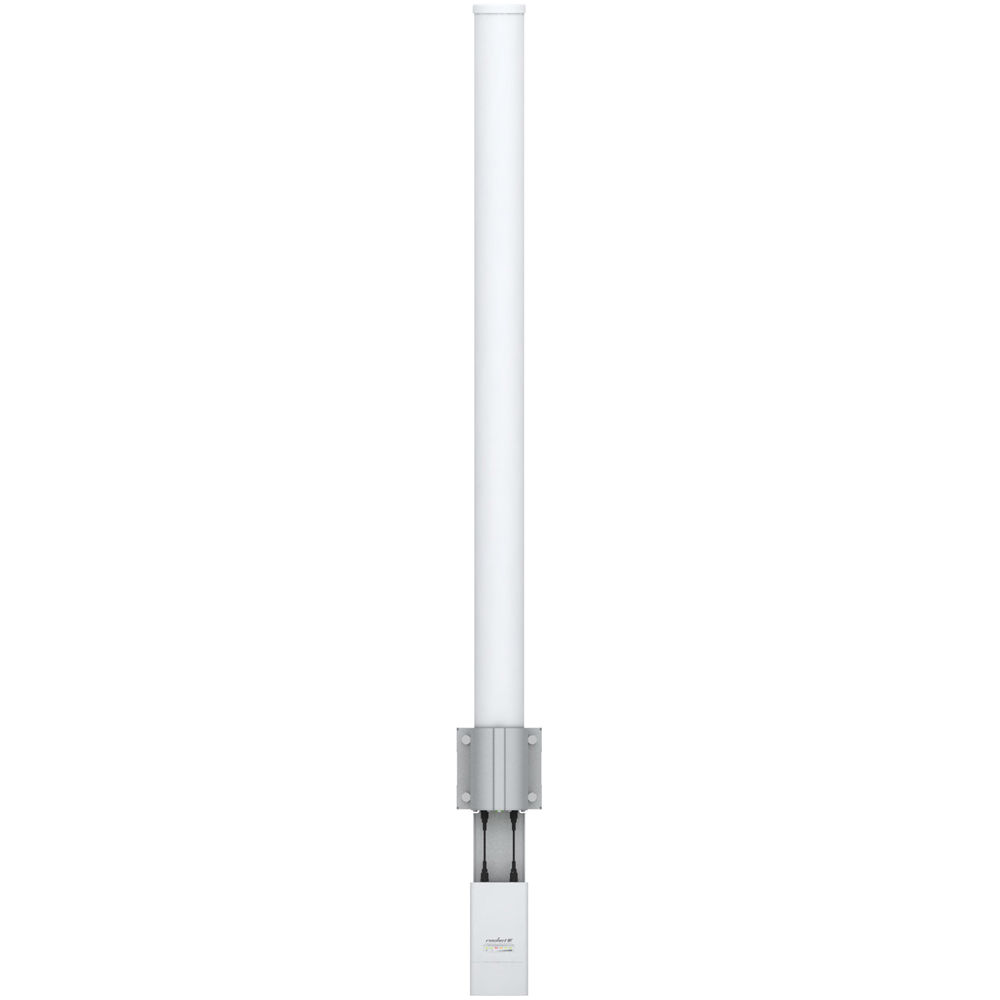

Ubiquiti Networks AirMAX Omni 2×2 Dual Polarity MIMO Antenna
$119.25
In stock
Description
Additional information
Weight | 6.15 lbs |
---|---|
Dimensions | 43.5 × 6.25 × 4.7 in |
Frequency Range | 3.4 to 3.7 GHz |
Gain | 12 dBi |
Elevation Beamwidth | 8° |
VSWR (Voltage Standing Wave Ratio) | 1.6:1 |
Electrical Downtilt | 4° |
Wind Survivability | 125 mph |
Wind Loading | 16 lb @ 100 mph |
Polarization | Dual-Linear |
Cross-pol Isolation | 25 dB Min |
ETSI Specification | EN 302 326 DN2 |
Mounting | Universal Pole Mount, RocketM Bracket, and Weatherproof RF Jumpers Included |
