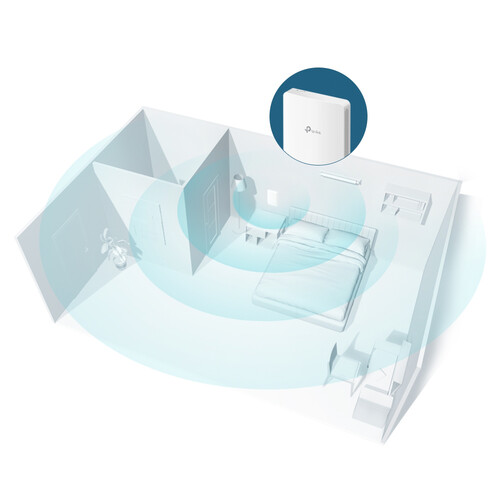

Expand your business’s Wi-Fi coverage with elegance using the EAP235-Wall Omada AC1200 PoE-Compliant Wireless Gigabit Wall Plate Access Point. Compatible with 86mm junction boxes with PoE support, this wireless dual-band wall-plate mounting access point measures less than an inch thick to unobtrusively blend in with environments such as offices and hotel rooms. It includes high-powered internal antennas that deliver a maximum data transfer rate of up to 867 Mb/s at 5 GHz and 300 Mb/s at 2.4 GHz to help ensure far reaching and stable wireless coverage. There are three 1000 Mb/s access Ethernet ports and one uplink 802.3af/at PoE port. The uplink port powers the access point while a pass-through port delivers power to IP phones, cameras, intercoms, and more. Your wireless network is protected with enterprise-class security and you can manage it from almost anywhere using the Omada cloud platform.
TP-Link EAP235-Wall Omada AC1200 PoE-Compliant Wireless Gigabit Wall Plate Access Point
$41.99
In stock
Description
Additional information
Weight | 0.69 lbs |
---|---|
Dimensions | 7.2 × 4.6 × 1.3 in |
Wireless Frequency Bands | 2.4 GHz, 5 GHz Dual-Band |
Operation Modes | Access Point |
Mount Options | Wall |
IP Rating | None |
Storage Humidity | 5 to 90% |
Operating Humidity | 10 to 90% |
Storage Temperature | -40 to 158°F / -40 to 70°C |
Operating Temperature | 32 to 104°F / 0 to 40°C |
Power Consumption | ≤24.4 W |
Storage Capacity | None |
Throughput | 1167 Mb/s Total <br>5 GHz: 867 Mb/s <br>2.4 GHz: 300 Mb/s |
Max SSIDs Supported | 16 |
Lock Slot | Yes |
Number of Antennas | 2 |
Wireless Security | WEP 128, WEP 152, WEP 64, WPA, WPA-PSK, WPA2, WPA2-PSK |
USB Sharing Support | No |

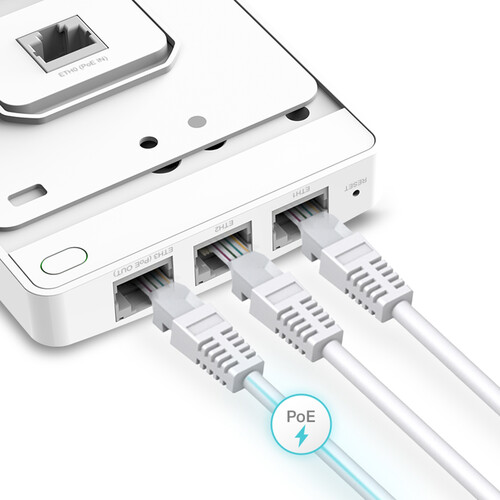

Ports | 1 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45) (Uplink) PoE<br />2 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45) (Console)<br />1 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45) (Pass-Through) PoE |
Bluetooth | None |
Antenna Placement | Internal |
Supported Protocols | SNMPv1<br>SNMPv2c |
Transmit Power | 21 dBm |
Antenna Gain | 8 dBi |
WLAN Mode | Wi-Fi 5 (802.11ac) |
MU-MIMO Support | Yes |
Warranty Length | Limited Lifetime Warranty |
