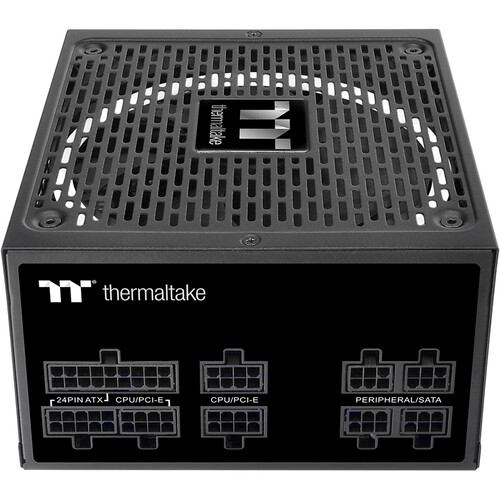

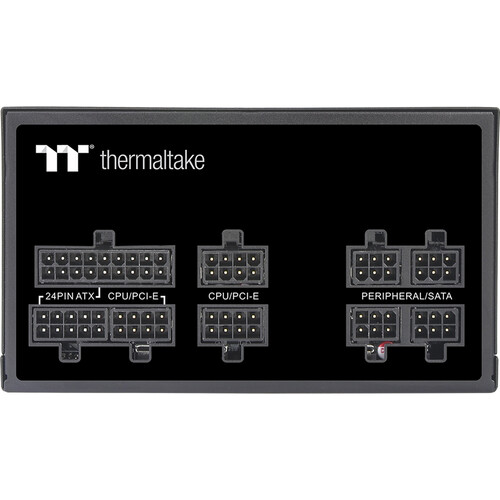

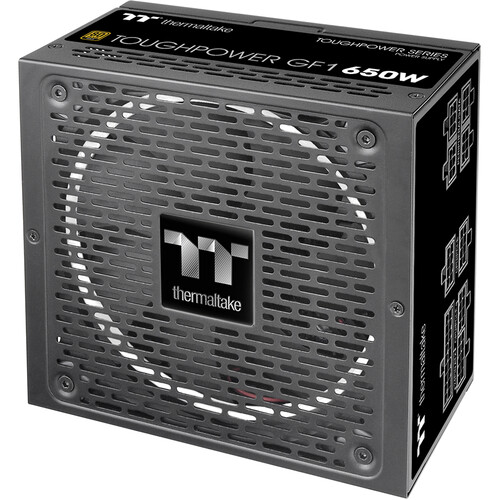

Power up your computer system without cluttering it with cables by using the Thermaltake Toughpower GF1 650W 80 PLUS Gold Modular ATX Power Supply. This power supply delivers up to 650W of power and includes single +12V rail and features a modular cable design. With its 80 PLUS Gold efficiency rating, the Toughpower GF1 can reach up to 90% power efficiency while its 140mm hydraulic bearing fan quietly helps to maintain optimal temperatures. In addition to the motherboard and CPU power connectors, there are four PCIe connectors, nine SATA connectors, and four 4-pin connectors for peripherals. A floppy drive adapter, which attaches to a 4-pin connector, is also included. The flat, modular, low-profile cable design allows you to only use the cables that you need for a clean, organized, and uncluttered build. The Thermaltake Toughpower GF1 650W 80 PLUS Gold Modular ATX Power Supply has an estimated lifespan of up to 120,000 hours.

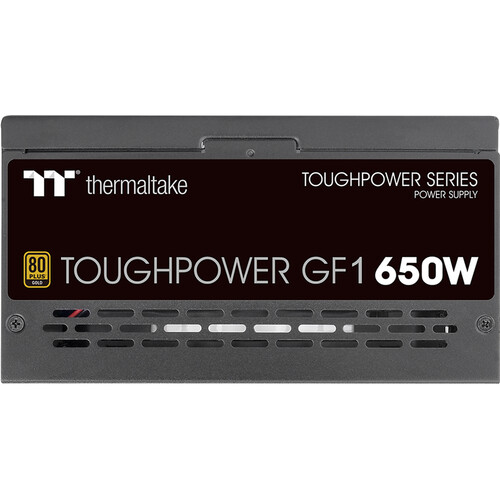

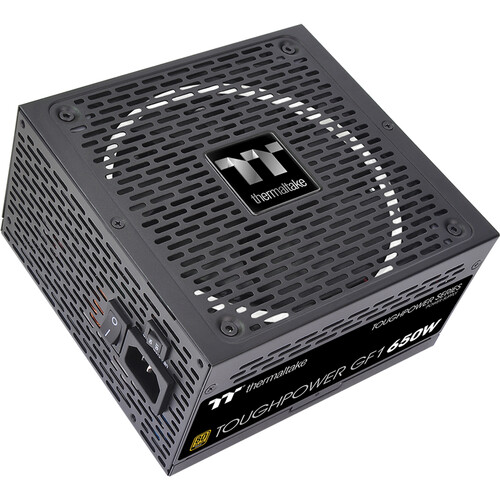

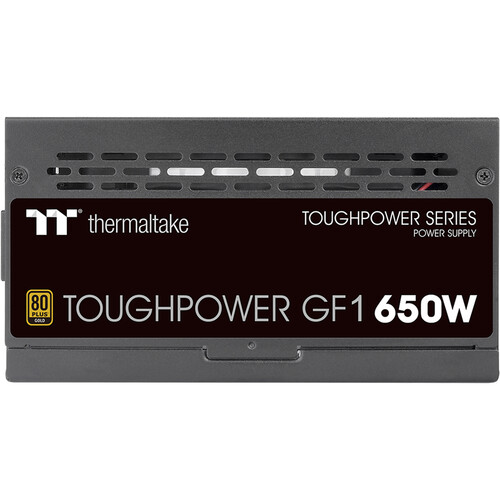

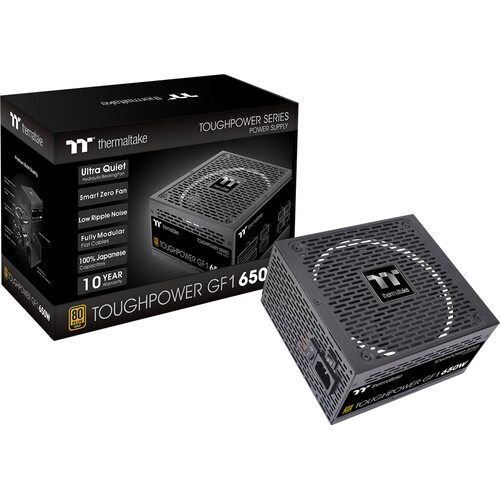

Thermaltake Toughpower GF1 650W 80 PLUS Gold Modular ATX Power Supply
$76.99
In stock
Description
Additional information
Weight | 6.48 lbs |
---|---|
Dimensions | 12.7 × 9.1 × 6.3 in |
Total Connectors | 1 x 24-Pin ATX Motherboard<br />1 x 4+4-Pin EPS CPU<br />9 x 15-Pin SATA<br />4 x 6+2-Pin PCIe<br />4 x 4-Pin Peripheral / Molex<br />1 x 4-Pin Floppy |
Bearing Type | Hydraulic |
Voltage Protection Range | +3.3 V: 4.5 V<br />+5 V: 7 V<br />+12 V: 14.5 V |
Efficiency Rating | 80 PLUS Gold |
Active Power Factor Correction | Yes |
Hold up Time | 16 ms at 100% Load |
Power-Good Signal | 100 to 500 ms |

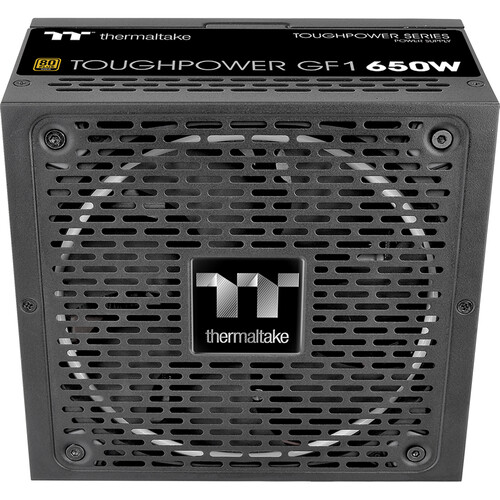

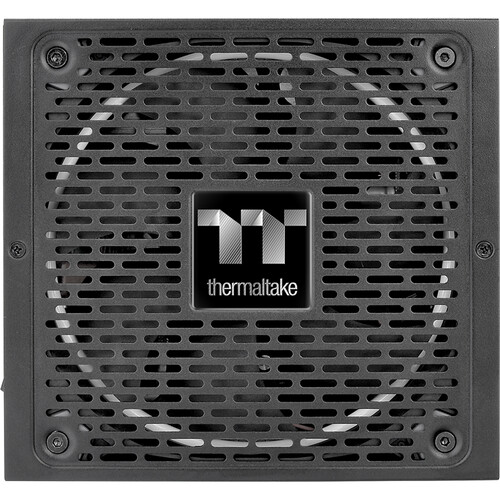

Fan Size | 140 mm |
Operating Temperature | 32 to 122°F / 0 to 50°C |
Peak Power | 780 W |
Operating Humidity | 20 to 90% |
Storage Temperature | -4 to 158°F / -20 to 70°C |
Storage Humidity | 5 to 95% |
Form Factor | ATX |
Protection | Over-Current Protection, Over-Power Protection, Over-Temperature Protection, Over-Voltage Protection, Short-Circuit Protection, Under-Voltage Protection |
Certifications | BSMI, CE, EAC, FCC, TUV, cTUVus, as per Manufacturer |

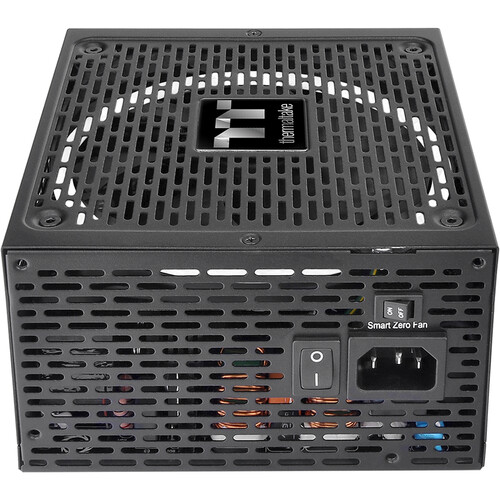

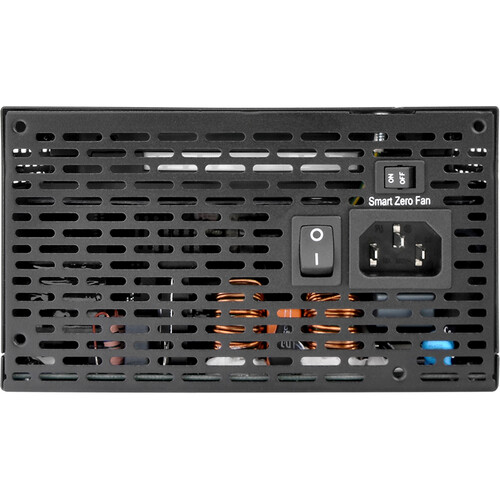

AC Input Power | 100 to 240 VAC, 50 / 60 Hz at 10 A |
Max Power for -12 V | 3.6 W |
Cable Design | Flat, Modular |
Total Wattage | 650 W |
PCIe Connector Distances | 19.7" / 500 mm<br />5.9" / 150 mm |
SATA Connector Distances | 19.7" / 500 mm<br />5.9" / 150 mm<br />5.9" / 150 mm |
Peripheral Connector Distances | 19.7" / 500 mm<br />5.9" / 150 mm<br />5.9" / 150 mm<br />5.9" / 150 mm |
Floppy Connector Distances | 5.9" / 150 mm (Adapter) |
ATX Connector Distance | 23.6" / 600 mm |
EPS Connector Distances | 25.6" / 650 mm |
Number of +12 V Rails | 1 |

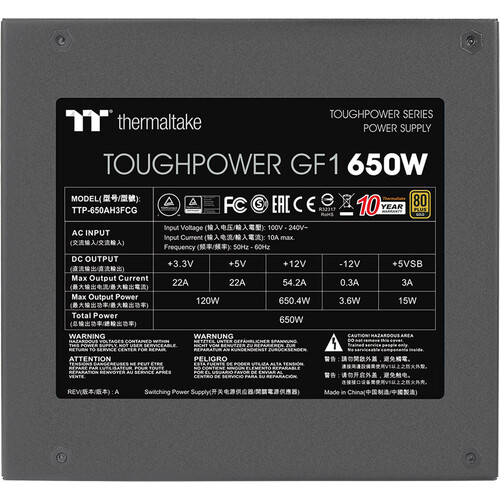

Max Load for +5 Vsb | 3 A |
Combined Power for +12 V | 650.4 W |
Max Load for -12 V | 0.3 A |
Combined Power for +3.3/+5 V | 120 W |
Max Load for +3.3 V | 22 A |
Max Load for +5 V | 22 A |
Max Power for +5 Vsb | 15 W |
Mean Time Between Failures (MTBF) | 120, 000 Hours |
