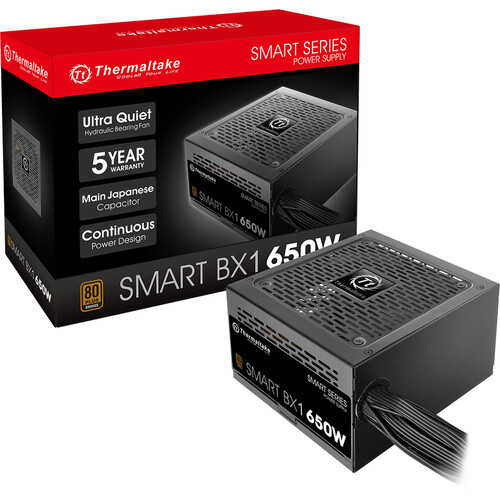

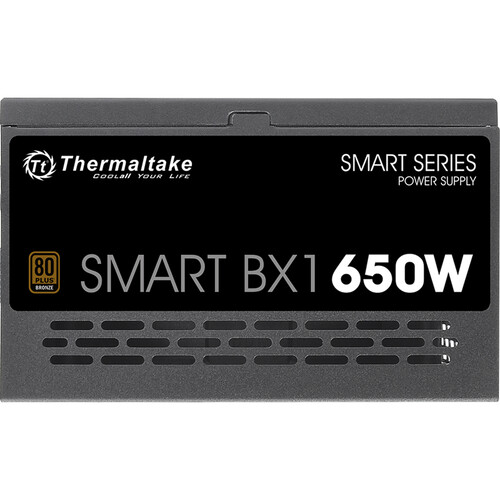

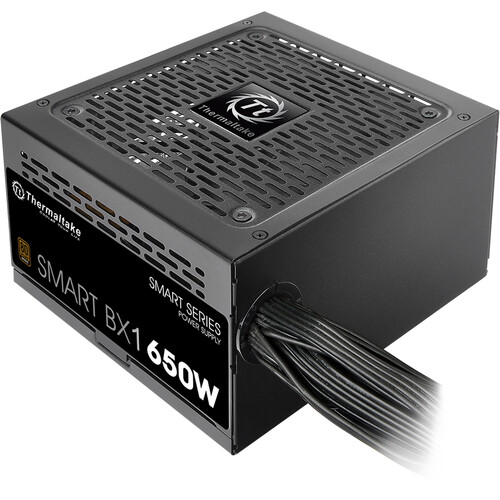

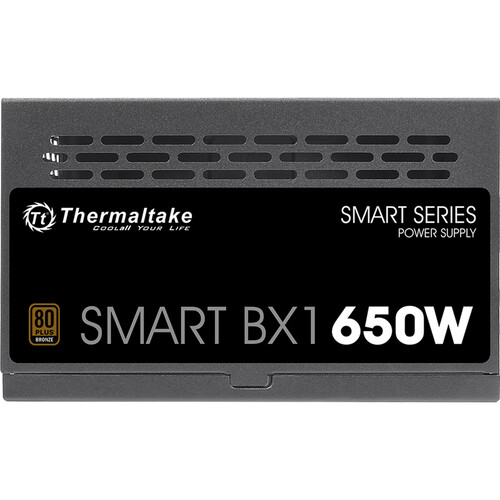

Keep components powered with the Smart BX1 650W 80 PLUS Bronze Power Supply from Thermaltake. Featuring a non-modular design, this ATX power supply delivers 650W of power and utilizes a single +12V rail. Rated 80 PLUS Bronze, the BX1 550W can reach up to 88% efficiency, while a 120mm hydraulic bearing fan keeps noise low. In addition single motherboard and CPU connectors, the Smart BX1 650W also includes two PCIe, six SATA, and four 4-pin connectors. A floppy adapter is also present, connecting to one of the 4-pin peripheral connectors. Utilizing a sleeved design, the cabling is intended to make installation easy. The Thermaltake Smart BX1 650W 80 PLUS Bronze PSU features a lifespan of up to 100,000 hours.
Description
Additional information
| Weight | 4.3 lbs |
|---|---|
| Dimensions | 10 × 7.9 × 3.7 in |
| Total Connectors | 1 x 24-Pin ATX Motherboard<br />1 x 4+4-Pin EPS CPU<br />2 x 6+2-Pin PCIe<br />6 x 15-Pin SATA<br />4 x 4-Pin Peripheral / Molex<br />1 x 4-Pin Floppy |
| Bearing Type | Hydraulic |
| Efficiency Rating | 80 PLUS Bronze |
| Active Power Factor Correction | Yes |
| Efficiency | 88% |
| Hold up Time | 16 ms at 70% Load |
| Power-Good Signal | 100 to 500 ms |

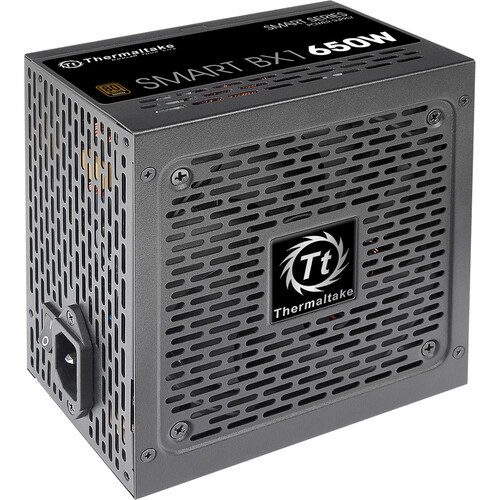

| Fan Size | 120 mm |
| Operating Temperature | 41 to 104°F / 5 to 40°C |
| Peak Power | 780 W |
| Operating Humidity | 20 to 85% |
| Storage Temperature | -40 to 131°F / -40 to 55°C |
| Storage Humidity | 10 to 95% |
| Form Factor | ATX |
| Compliance | ATX 12 V v2.3, EPS 12 V v2.92 |
| Certifications | BSMI, CB, CE, FCC, TUV, UL, as per Manufacturer |

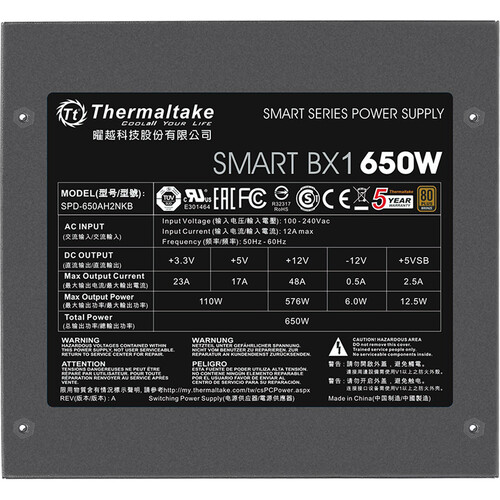

| AC Input Power | 100 to 240 VAC, 50 / 60 Hz at 10 A |
| Max Power for -12 V | 6 W |

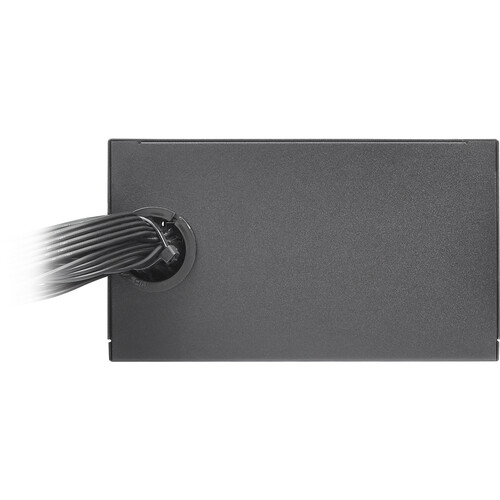

| Cable Design | Sleeved |
| Total Wattage | 650 W |
| PCIe Connector Distances | 19.7" / 500 mm<br />5.9" / 150 mm |
| SATA Connector Distances | 19.7" / 500 mm<br />5.9" / 150 mm<br />5.9" / 150 mm<br />5.9" / 150 mm |
| Peripheral Connector Distances | 19.7" / 500 mm<br />5.9" / 150 mm<br />5.9" / 150 mm<br />5.9" / 150 mm |
| Floppy Connector Distances | 5.9" / 150 mm (Adapter) |
| ATX Connector Distance | 23.6" / 600 mm |
| EPS Connector Distances | 25.6" / 650 mm |
| Number of +12 V Rails | 1 |
| Max Load for +5 Vsb | 2.5 A |
| Combined Power for +12 V | 576 W |
| Max Load for -12 V | 0.5 A |
| Combined Power for +3.3/+5 V | 110 W |
| Max Load for +3.3 V | 23 A |
| Max Load for +5 V | 17 A |
| Max Power for +5 Vsb | 12.5 W |
| Mean Time Between Failures (MTBF) | 100, 000 Hours |
