SilverStone 500W 80 Plus Gold Modular SFX-L Power Supply

SilverStone 500W 80 Plus Gold Modular SFX-L Power Supply

Name: SilverStone 500W 80 Plus Gold Modular SFX-L Power Supply
Brand: SilverStone
SKU: BH1179628
Price: 71.25 USD
Availability: InStock

$71.25

In stock

SKU: BH1179628 Category: Desktop Components Brand: SilverStone

Description

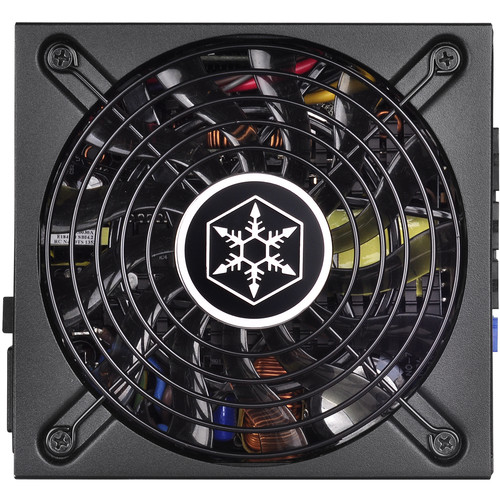

The 500W 80 Plus Gold Modular SFX-L Power Supply from SilverStone features an 87~90% efficiency at 20~100% loading. It is able to provide 24/7 continuous power output with an operating temperature of 104°F / 40°C. Its power density per liter is 484W, and its 120mm fan helps to provide cooling with its intelligent semi-fanless operation. It uses flat, modular cables. Other features include a single +12V rail with 40A, support for SFX-L and ATX form factors, active PFC, and support for dual PCIe 8/6pin connectors.

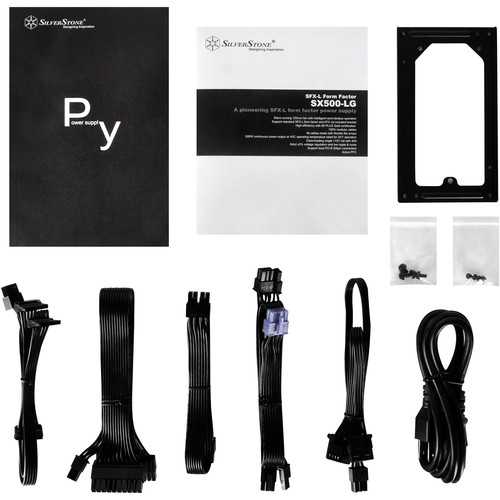

This power supply has a noise level of 0-36 dBA. It supports select NVIDIA and AMD GPUs as well as ATX12V v2.4. This power supply is able to fit into systems with a depth of up to 130mm. Included is an SFX to ATX mounting bracket.

Additional information

Weight	4.16 lbs
Dimensions	8.7 × 8.25 × 3.2 in

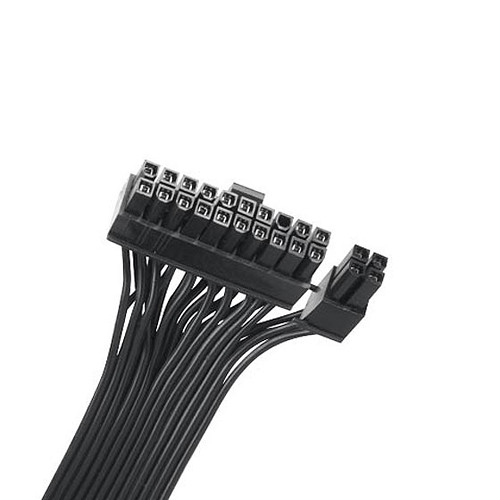

Total Connectors	1 x 20+4-Pin ATX Motherboard<br />1 x 4+4-Pin EPS CPU<br />2 x 6+2-Pin PCIe<br />3 x 15-Pin SATA<br />2 x 4-Pin Peripheral / Molex<br />1 x 4-Pin Floppy

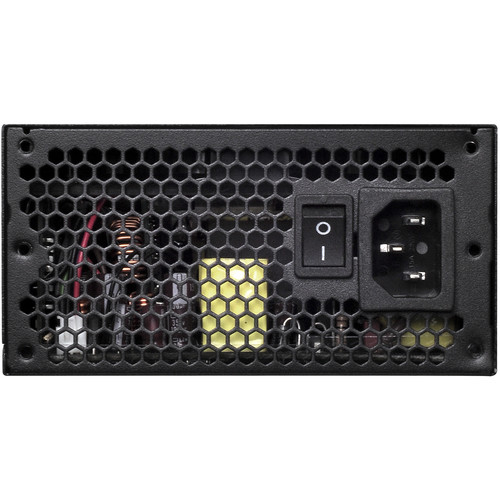

AC Input Power	90 to 264 VAC, 50 / 60 Hz
Protection	Over-Power Protection, Over-Temperature Protection, Over-Voltage Protection, Short-Circuit Protection, Under-Voltage Protection
Compliance	ATX 12 V v2.4
Form Factor	SFX-L
Operating Temperature	50 to 122°F / 10 to 50°C
Noise Level	0 to 36 dBA
Fan Size	120 mm
Efficiency	87 to 90% at 20 to 100% Load
Active Power Factor Correction	95%
Efficiency Rating	80 PLUS Gold

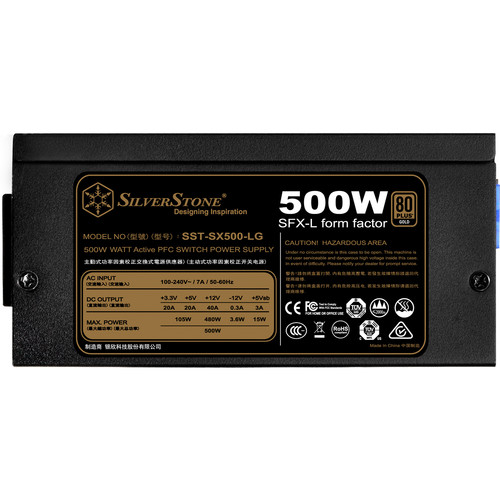

Ripple and Noise	+3.3 V: 50 mV, +5 V: 50 mV, +12 V: 120 mV, -12 V: 120 mV, +5 Vsb: 50 mV
Voltage Regulation	+3.3 V: ± 3%, +5 V: ± 3%, +12 V: ± 3%, -12 V: ± 10%, +5 Vsb: ± 5%
Max Load for +5 Vsb	3 A

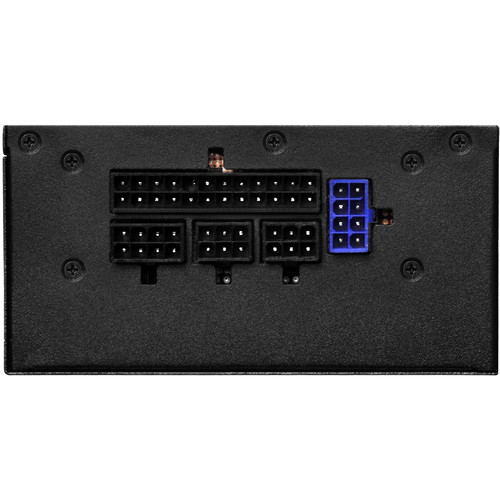

Cable Design	Modular
Max Load for +5 V	20 A
Max Load for +3.3 V	20 A
Combined Power for +3.3/+5 V	105 W
Max Load for -12 V	0.3 A
Combined Power for +12 V	480 W
Total Wattage	500 W
EPS Connector Distances	15.7" / 400 mm
ATX Connector Distance	11.8" / 300 mm

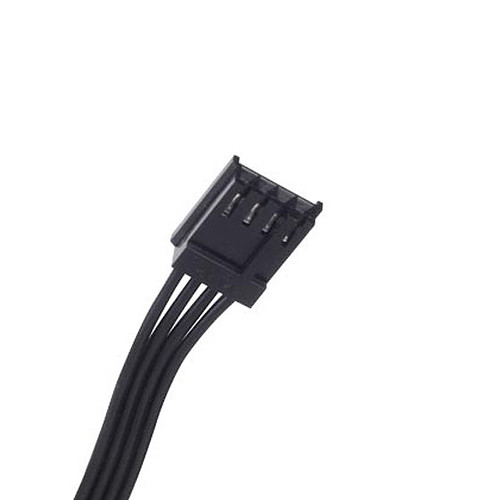

Floppy Connector Distances	11.8" / 300 mm<br />19.7" / 500 mm<br />27.6" / 700 mm

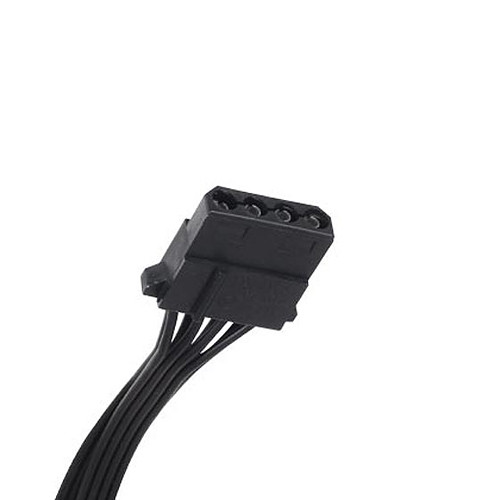

Peripheral Connector Distances	11.8" / 300 mm<br />19.7" / 500 mm<br />27.6" / 700 mm

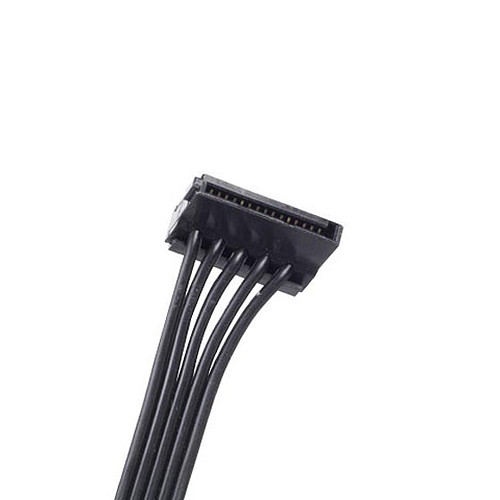

SATA Connector Distances	11.8" / 300 mm<br />19.7" / 500 mm<br />23.6" / 600 mm

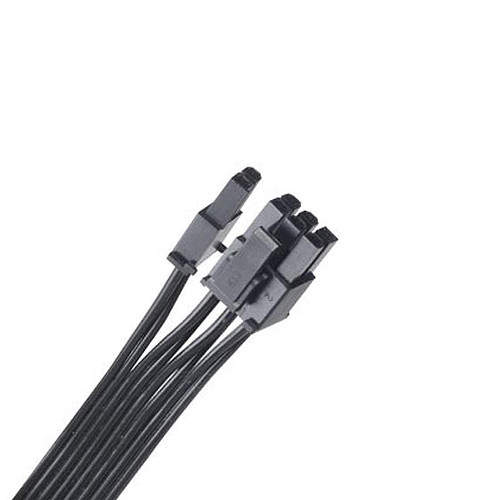

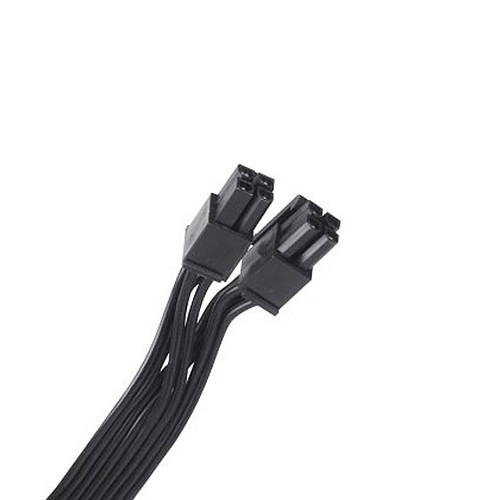

PCIe Connector Distances	15.7" / 400 mm<br />21.7" / 550 mm
Mean Time Between Failures (MTBF)	100, 000 Hours
