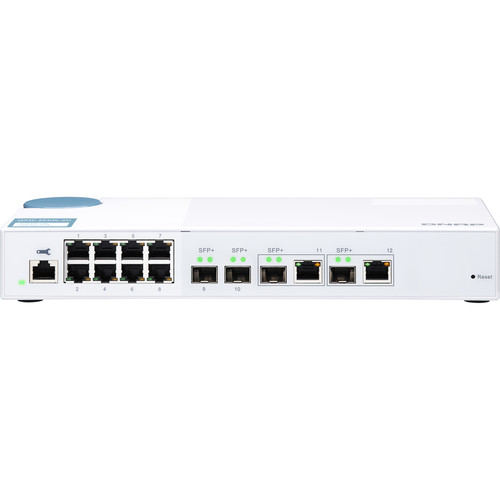

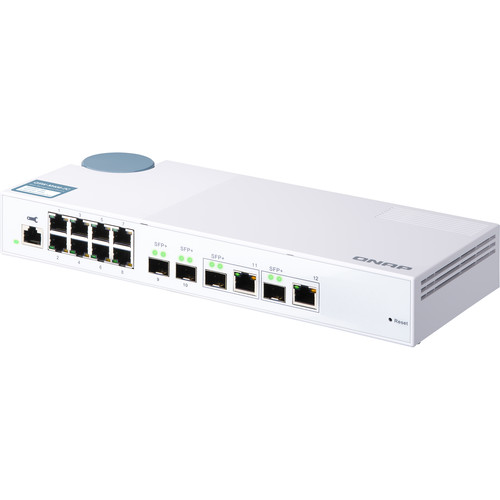

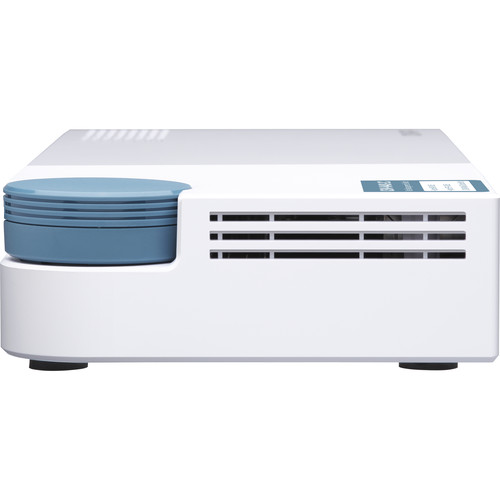

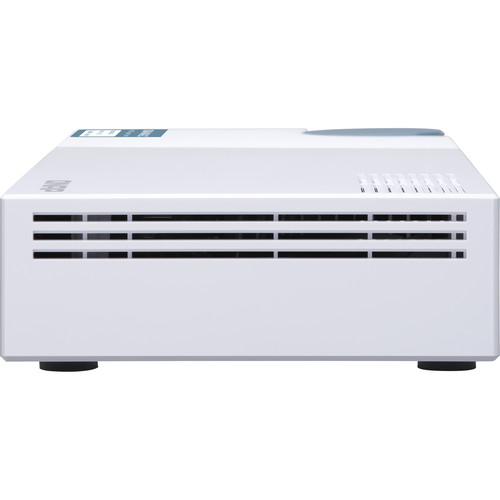

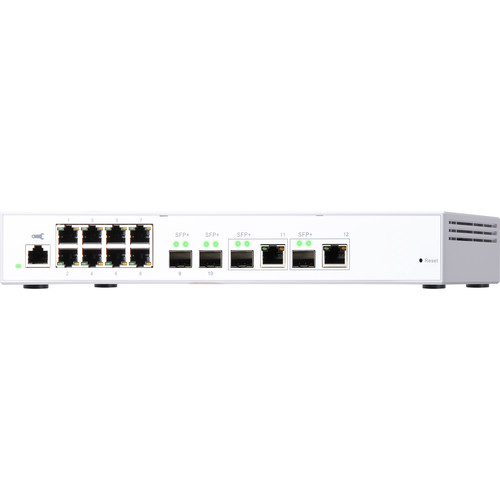

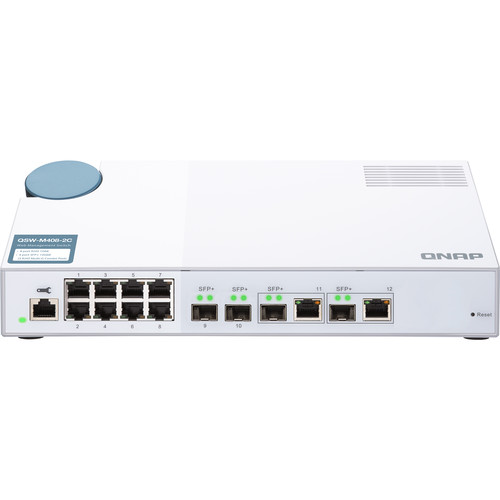

Expand your network capacity with the QNAP QSW-M408-2C 12-Port Gigabit Managed Switch. This entry-level Layer 2 managed switch includes eight Gigabit Ethernet ports alongside two 10G SFP+ / RJ45 (copper) combo ports and two 10G SFP+ ports for flexible deployments that use both Ethernet and fiber connections. The 10G combo ports are compatible with 10 GbE and NBASE-T technologies, providing fast and efficient data transmissions over Cat 5e, 6e, 6a, and 7 cables. The web-based management system allows you to quickly monitor and manage your switch and its connected high-speed devices. Featuring a compact desktop design with a 96 Gb/s switching capacity, the QSW-M408-2C is built to operate quietly in almost any environment.
Description
Additional information
| Weight | 3.88 lbs |
|---|---|
| Dimensions | 12.35 × 8.9 × 2.35 in |
| Ports | 8 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45)<br />2 x 10Gb Combo (Ethernet/SFP)<br />2 x 10Gb SFP+ |
| Layer Services Supported | Layer 2 Support |
| Supported Protocols | IGMP Snooping<br>IPv4<br>IPv6 |
| Jumbo Frames Support | 9000 Bytes |
| MAC Address Table Size | 16K |
| Supported IEEE Standards | 802.1ab, 802.1p, 802.1w, 802.3, 802.3ab, 802.3ad, 802.3ae, 802.3an, 802.3az, 802.3bz, 802.3q, 802.3u, 802.3x, 802.3z |
| Switching Bandwidth | 48 Gb/s (Non-Blocking)<br />96 Gb/s |
| Power Draw | 22.04 W (Max) |
| AC Input Power | 100 to 240 VAC, 50 / 60 Hz |
| Power Supply Type | External |
| Operating Temperature | 32 to 104°F / 0 to 40°C |
| Operating Humidity | 5 to 95% |
| Cooling System | Passive |
| Indicator Lights | Link/Activity/Speed, Power, Status |
