Expand your business’s network to support high-bandwidth applications and demanding power-over-Ethernet devices such as advanced IP security cameras, Wi-Fi 6 access points, and more with the Netgear Ultra60 MS510TXUP 8-Port Multi-Gigabit PoE++ Compliant Managed Switch. This eight-port managed switch includes four 2.5G Ethernet ports alongside four 10G Ethernet ports for high-volume data transfers with compatible devices such as computers and network storage drives. All eight Ethernet ports are 60W PoE++ compliant with a total power budget of 295W. Two 10G SFP+ ports are also available for high-speed fiber uplinks and device connections. Equipped with a 1 GHz dual-core processor with 256MB of memory and featuring a 140 Gb/s switching capacity and 14.8 Mpps forwarding rate, this switch delivers fast and reliable performance. With three cooling fans, the MS510TXUP is designed to operate quietly in a desktop or rackmount installation, even when at full power. Activating the included 1-year Netgear Insight Cloud Management platform subscription allows you to configure, manage, and monitor connected devices using powerful Layer 2+ and Layer 3 Lite features from almost anywhere in the world.

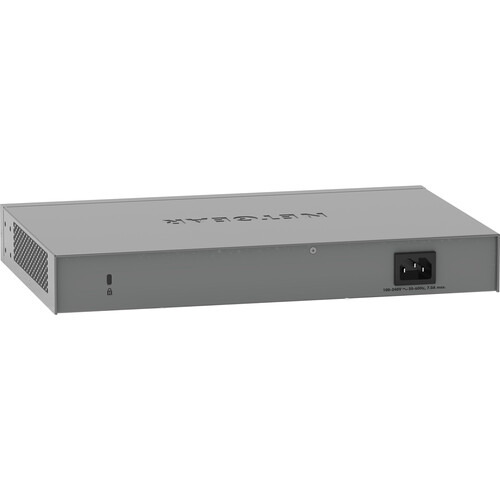

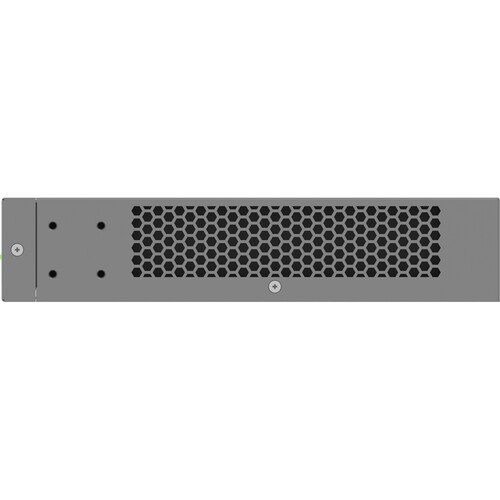

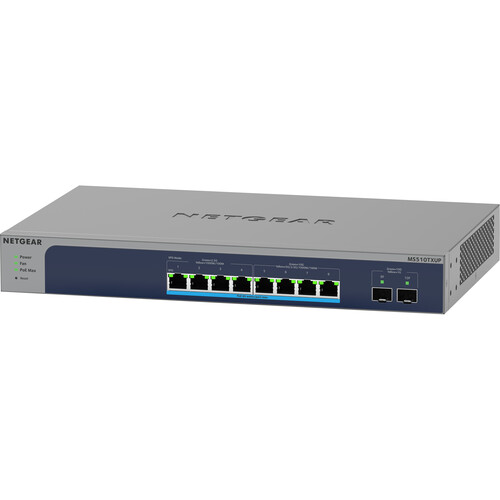

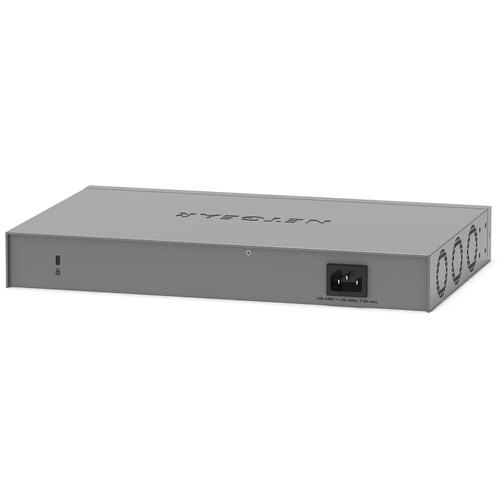

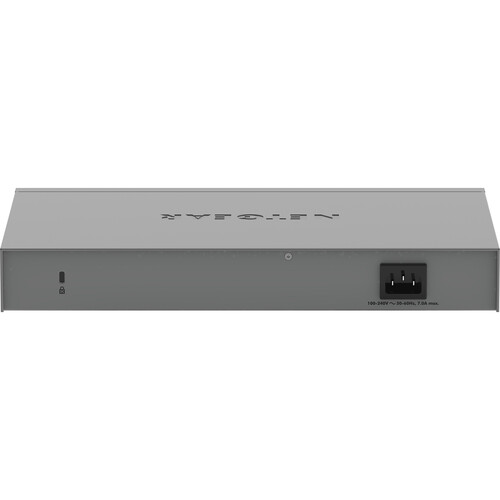

Netgear Ultra60 MS510TXUP 8-Port Multi-Gigabit PoE++ Compliant Managed Switch with SFP+
$389.35
In stock
Description
Additional information
Weight | 7.89 lbs |
---|---|
Dimensions | 17.8 × 10.6 × 3.6 in |
Ports | 4 x 2.5 Gb/s Ethernet (RJ45) PoE (Type 3)<br />4 x 10Gb Ethernet (RJ45) PoE (Type 3)<br />2 x 10Gb SFP+ |
Operating Humidity | 95% |
OS Compatibility | Windows<br />macOS<br />iPadOS<br />Android |
Power Draw | 380.00 W (Max)<br />31.5 W (Idle) |
AC Input Power | 120 VAC, 60 Hz |
PoE Power Budget | 295 W |
PoE per Port | 60 W |
Power Supply Type | Internal |
Operating Temperature | 32 to 122°F / 0 to 50°C |
Storage Temperature | -4 to 158°F / -20 to 70°C |
Processor | 1 GHz Dual-Core |
Storage Humidity | 95% |
Operating Altitude | 10, 000' / 3048 m |
Storage Altitude | 1000' / 304 m |
Noise Level | 33.0 dB |
Cooling System | Fan |
Mean Time Between Failures (MTBF) | 848, 553 Hours |
Indicator Lights | Fan, Link/Activity/Speed, PoE, Power |
Memory | 256 MB |
Flash Memory | 64 MB |
Layer Services Supported | Layer 2 Support, Layer 3 Support, Layer 4 Support |
Security Features | DHCP Snooping<br>DoS Attack Prevention<br>RADIUS Authentication<br>Storm Control |
Supported Protocols | Auto-MDIX/MDI |
Queuing | Strict Priority, Weighted Round Robin (WRR) |
Transmission Method | Store-and-Forward |
Jumbo Frames Support | 10, 000 Bytes |
MAC Address Table Size | 32K |
Multicast Groups | 256 |
VLAN Groups | 256 |
Access Control List | 100 |
Packet Buffer | 2 MB |
Static Routes | 32 |
SNMP Support | 1, 2c, 3 |
Supported IEEE Standards | 802.1ab, 802.1d, 802.1p, 802.1s, 802.1w, 802.3ad, 802.3az, 802.3bt, 802.3x |
Latency | 1.2 to 5.9 µs |
Forwarding Rate | 14.8 Mpps |
Switching Bandwidth | 140 Gb/s (Non-Blocking) |
Priority Queues | 8 |
Rack Form Factor | 1 RU |
