$174.30

Free U.S. Standard Shipping
30-Day Money Back
100% Secure Payments
Top-notch support

In stock

SKU: BH1368520 Category: Brand:
Description

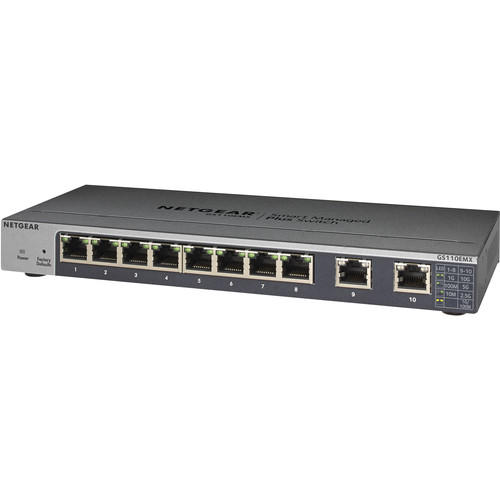

Expand your network using the GS110EMX 8-Port Smart Managed Plus Gigabit Switch from NETGEAR. This switch comes equipped with eight Gigabit Ethernet ports and two 100M/1G/2.5G/5G/10G RJ-45 copper ports all in a reduced size form factor.

The compact design makes it easy to mount this switch to the wall, a rack, or a desktop, and with a durable metal case it can withstand a variety of environments. Once installed, the GS110EMX features a 56 Gb/s switching capacity, five networking speeds, and a variety of software based features including comprehensive QoS functionality, IGMP snooping, port trunking, link aggregation, and much more.

Additional information
Weight 2.93 lbs
Dimensions 10.9 × 6.7 × 3.3 in
Ports

Gigabit Ports<br>
8<br>
100M/1G/2.5G/5G/10G RJ-45 Copper Ports<br>
2
Form Factor

Desktop/Rackmount/Wallmount
Performance

Bandwidth<br>
56 Gbps<br>
Priority queues<br>
8<br>
Priority Queuing<br>
Weighted Round Robin (WRR)<br>
MAC Address Database Size (48-bit MAC addresses)<br>
16 K<br>
Multicast Groups<br>
128<br>
Packet Forwarding Rate (64 byte packet size)<br>
41.664 Mfps<br>
Speed / Latency<br>
10 Gb/s:
Power

Power/Energy Efficiency<br>
Energy-Efficient Ethernet<br>
Max. Power (worst case, all ports used, line-rate traffic)<br>
15.6 W
Quality of Service (QoS)

802.1p-based QoS/CoS Supported<br>
Yes<br>
Port-based rate limiting N/A<br>
Ingress and egress<br>
Port-based QoS<br>
Yes<br>
IEEE 802.1p COS<br>
Yes<br>
IPv4 DSCP<br>
Yes<br>
Pre-Defined Rate Limiting Rates<br>
1/5/10/50/100/500 Mb/s<br>
Pre-Defined Port Priority Queues<br>
8<br>
Weighted Round Robin (WRR)<br>
Yes<br>
Strict priority queue technology<br>
No<br>
Voice VLAN<br>
Yes
L2 Services - VLANS

VLAN (# Supported)<br>
64<br>
IEEE 802.1Q VLAN Tagging<br>
Yes<br>
Port-based VLAN<br>
Yes
L2 Services - Availability

Broadcast, multicast, unknown unicast storm control<br>
Yes<br>
Static Manual LAGs (Port Trunking)<br>
Yes<br>
LACP<br>
Yes<br>
IEEE 802.3x (full duplex and flow control)<br>
Yes
L2 Services - Multicast Filtering

IGMP snooping (v1, v2, and v3)<br>Yes<br>
IGMP snooping querier<br>No<br>
Block unknown multicast<br>Yes<br>
Static multicast router port<br>Yes
L3 Services - DHCP

DHCP client<br>
Yes
Link Aggregation

Static Manual LAGs (Port Trunking)<br>
Yes<br>
# of Static LAGs / # of members in each LAG<br>
5 LAGs with max 9 members in each LAG
LEDs

Per Port: Speed, link, activity<br>
Per Device: Power
Power Consumption

Power Supply<br>
MX: External Power Adapter 12 V / 1.5 A<br>
EMX: External Power Adapter 12 V 2.5 A<br>
Max Power (worst case, all ports used, line traffic)<br>
15.6 v<br>
Min Power (link-down standby)<br>
MX: 4.8 W<br>
EMX: 6.6 W<br>
Heat Dissipation (BTU/hr)<br>
Max: 53.35 BTU/hr<br>
Min: 22.57 BTU/hr<br>
Fans<br>
Fanless
Environmental Specifications

Operating<br>
Temperature: 32 to 104°F / 0 to 40°C<br>
Humidity (Relative): 90% maximum, non-condensing<br>
Altitude: 10, 000' 3, 000 m maximum<br>
Storage<br>
Temperature: -4 to 158°F / -20 to 70°C<br>
Humidity (Relative): 95% maximum, non-condensing<br>
Altitude: 10, 000' 3, 000 m maximum
Certifications

Electromagnetic Emissions and Immunity<br>
47 CFR FCC Part 15, Subpart B, Class B<br>
ICES-003:2016 Issue 6, Class B<br>
ANSI C63.4:2014<br>
EN 55032:2012 +AC:2013 / CISPR 32:2012 / AS/NZS CISPR 32:2013, Class B<br>
EN 55032:2015 +AC:2016 / CISPR 32:2015 +COR1:2016 / AS/NZS CISPR 32:2015, Class B<br>
EN 61000-3-2:2014<br>
EN 61000-3-3:2013<br>
EN 55024:2010 +A1:2015<br>
AS/NZS CISPR 32:2015, Class B<br>
VCCI-CISPR 32:2016, Class B<br>
Russia EAC mark<br>
Korea KC mark<br>
CNS 13438<br>
Electromagnetic Compliance: Class B<br>
Safety<br>
CB mark, commercial<br>
UL/cUL Listed (UL 60950-1)/CAN/CSA C22.2 No. 60960-1-07<br>
EN 60950-1:2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013<br>
IEC 60950-1:2005 (ed.2)+A1:2009+A2:2013<br>
AS/NZS 60950.1:2015<br>
Russia EAC mark (GS110MX only)
