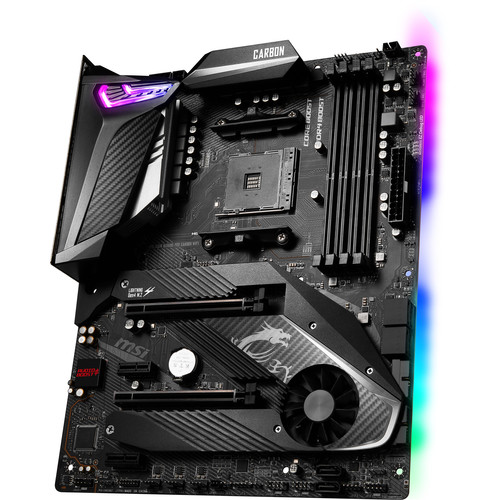

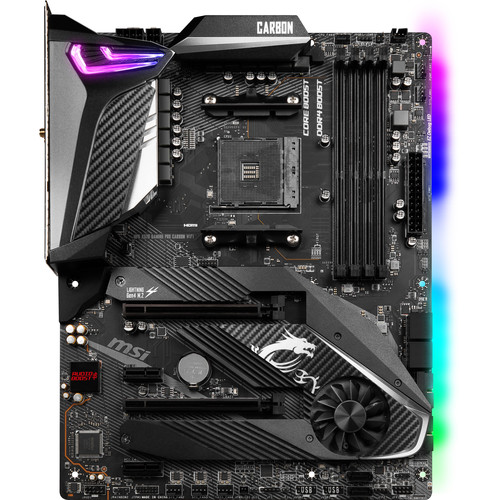

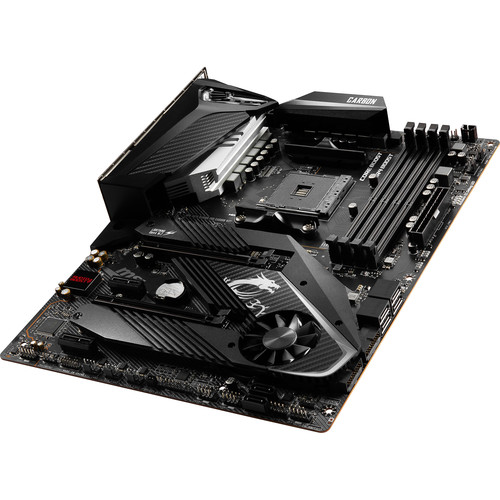

The MSI MPG X570 GAMING PRO CARBON WIFI AM4 ATX Motherboard is built on the AMD X570 chipset, supporting second- and third-generation AMD Ryzen processors with an AM4 socket. It has four memory slots for up to 128GB of dual-channel DDR4 RAM, which can be overclocked to up to 4400 MHz. For storage, it’s equipped with six SATA III ports and two M.2 slots. There are two PCIe 4.0 x16 slots for graphics cards, one of which runs x4 mode, and two PCIe 3.0 x1 slots for other PCI-based hardware. Other integrated features include Intel I211AT Gigabit Ethernet, Intel AX200 802.11ax Wi-Fi, Bluetooth 5.0, and Realtek ALC1220 7.1-channel HD audio.

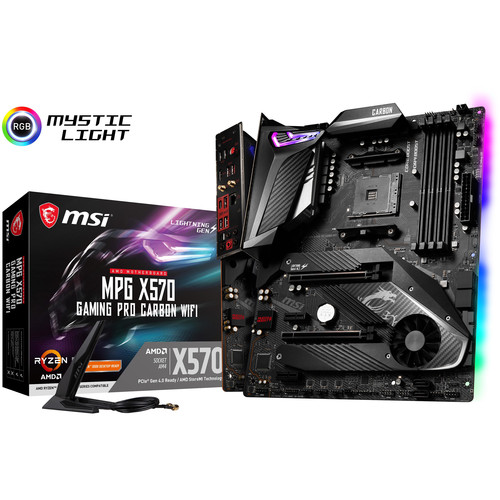

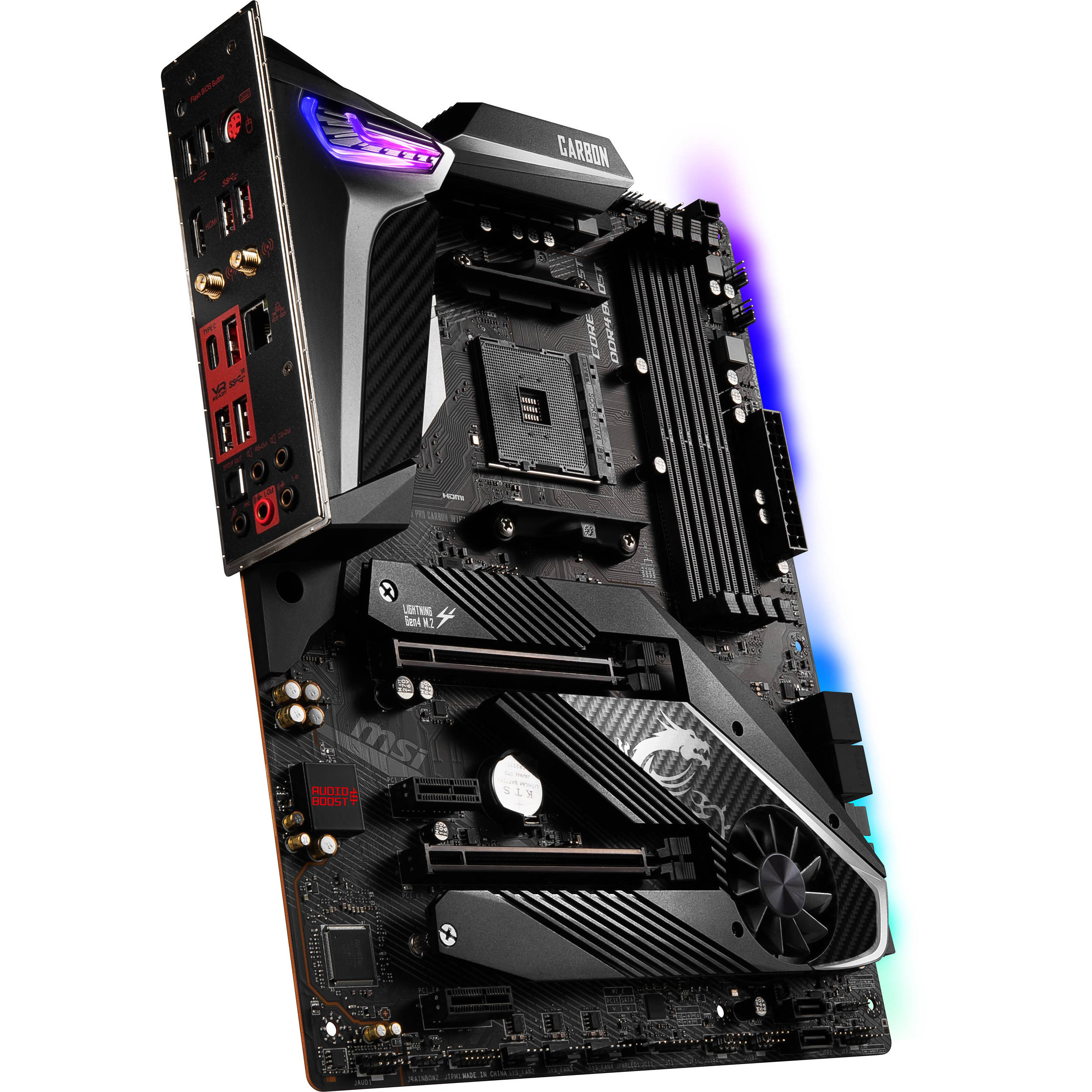

MSI MPG X570 Gaming Pro Carbon WIFI AM4 ATX Motherboard
$194.99

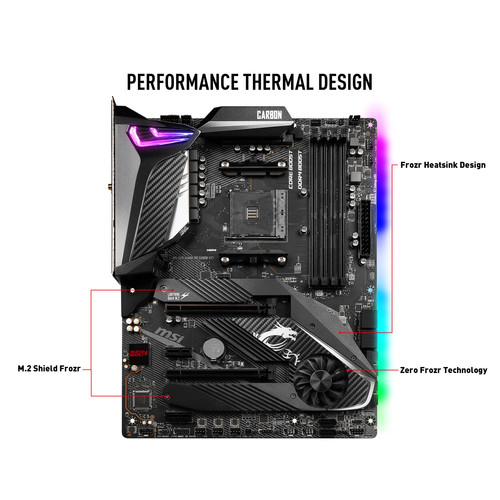

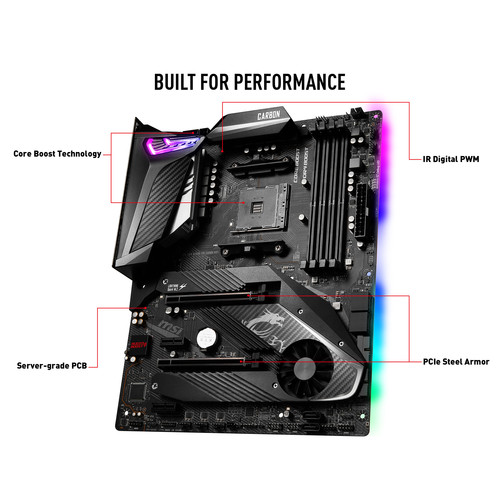

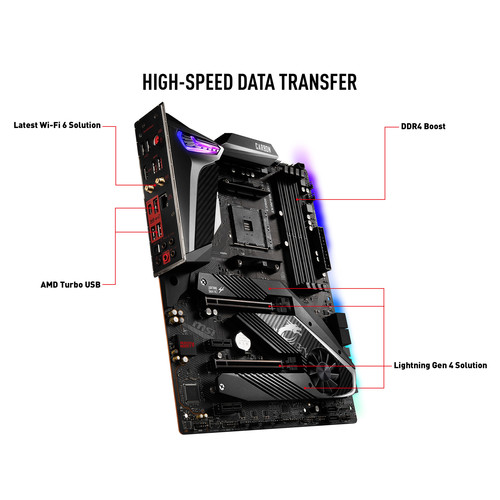

Inspired by the curve and shape of supercars, offers colorful customization with MSI Mystic Light RGB and Ambient Link, tuned for better performance by Core boost, DDR4 Boost, M.2 Shield Frozr, Wi-Fi 6, Frozr Heatsink Design, Lightning Gen4, Pre-installed I/O Shielding
Free U.S. Standard Shipping
30-Day Money Back
100% Secure Payments
Top-notch support
In stock
Description
Additional information
| Weight | 4.21 lbs |
|---|---|
| Dimensions | 13.6 × 10.8 × 3.5 in |
| Chipset | AMD X570 |
| RAID Support | RAID 0, 1, 10 |
| Supported Operating Systems | Windows 10 (64-Bit) |
| Module Support | 1 E Key M.2 |
| Wi-Fi | Wi-Fi 6 (802.11ax) (MU-MIMO) |
| Bluetooth | 5.0 |
| Audio Codec | Realtek ALC1220 (7.1-Channel) |
| I/O Connection Headers | AAFP |
| Diagnostics | Clear CMOS |
| LED Header | 3 x RGB |
| Security | Chassis Intrusion, TPM Module |
| Power Connectors | 1 x 24-Pin Mainboard<br />1 x 8-Pin CPU<br />1 x 4-Pin CPU |
| Liquid Cooling | 1 x 4-Pin Pump |
| Air Cooling | 1 x 4-Pin CPU<br />4 x 4-Pin System |
| Multi-GPU Support | 2-Way AMD CrossFireX |
| Expansion Slots | 1 x PCIe 4.0 x16 (x16 mode)<br />1 x PCIe 4.0 x16 (x4 mode)<br />2 x PCIe 3.0 x1 |
| U.2 | None |
| CPU Socket | AM4 |
| M.2 | 1 x M Key 2242, 2260, 2280, 22110 (PCIe 4.0 x4, PCIe 3.0 x4)<br />1 x M Key 2242, 2260, 2280 (PCIe 4.0 x4, PCIe 3.0 x4, SATA III) |
| SATA | 6 x SATA III |
| ECC Support | Non-ECC, ECC (Non-ECC Mode) Unbuffered |
| Channel Architecture | Dual Channel |
| Maximum Capacity | 128 GB |
| Memory Support | DDR4 1866, 2133, 2400, 2667, 2800, 2933, 3000, 3066, 3200, 3466, 3600, 3733, 3866, 4000, 4133, 4266, 4400 MHz |
| Memory Slots | 4 x 288-Pin |
| Buttons | BIOS Flashback |

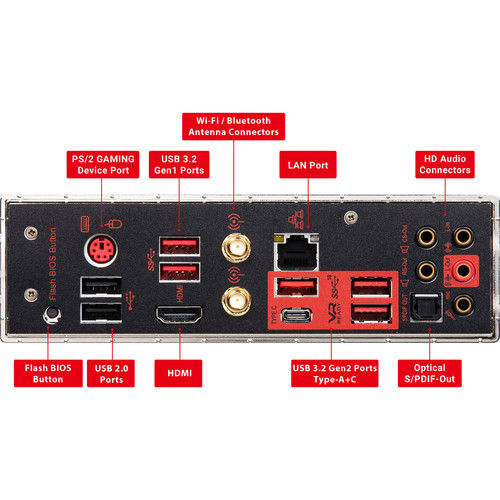

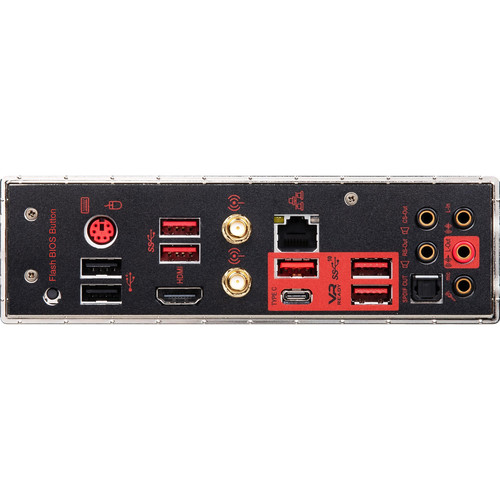

| Wi-Fi Antenna | 2 x Connector |
| PS/2 | 1 x PS/2 |
| Ethernet / Controller | 1 x Intel I211AT Gigabit |
| Display | 1 x HDMI 1.4 |
| Thunderbolt | None |
| USB | 2 x USB 2.0 Header (Supports 4 USB Type-A Port)<br />2 x USB 3.1 / USB 3.2 Gen 1 Header (Supports 4 USB Type-A Port) |
| Form Factor | ATX |
