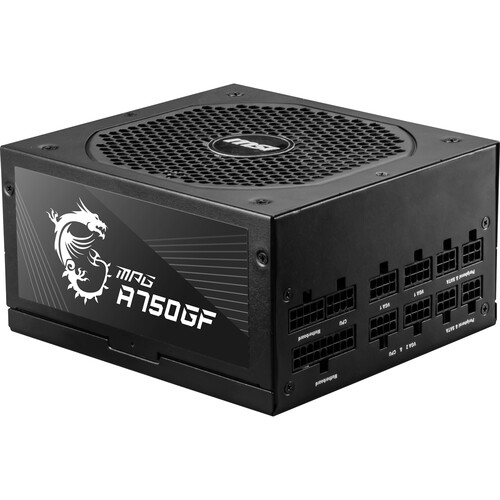

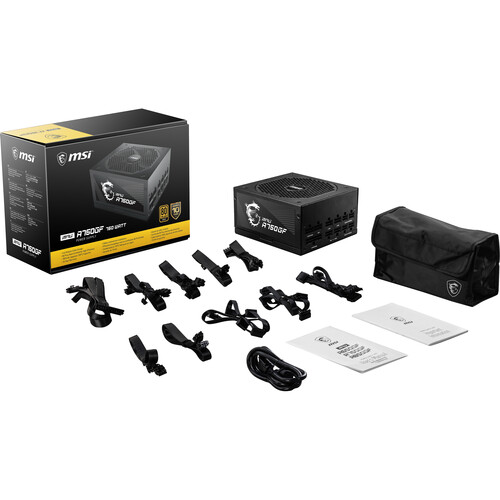

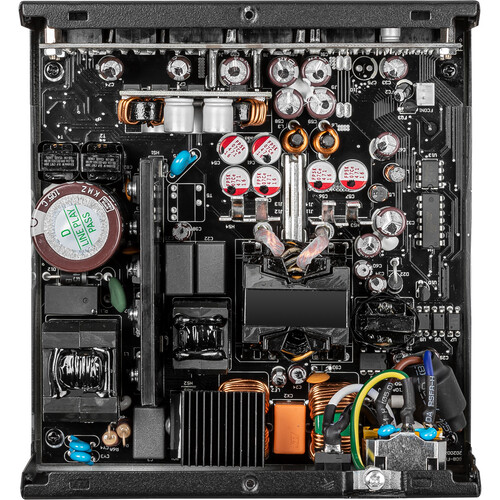

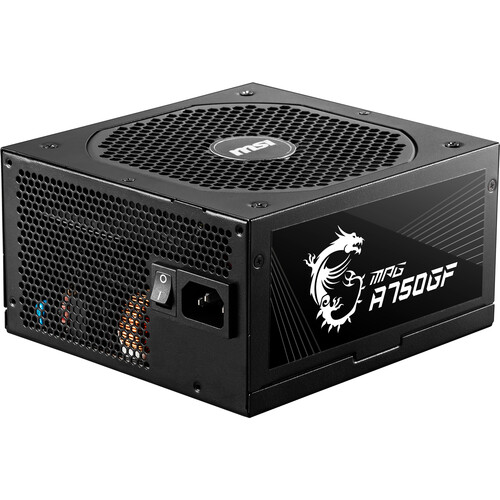

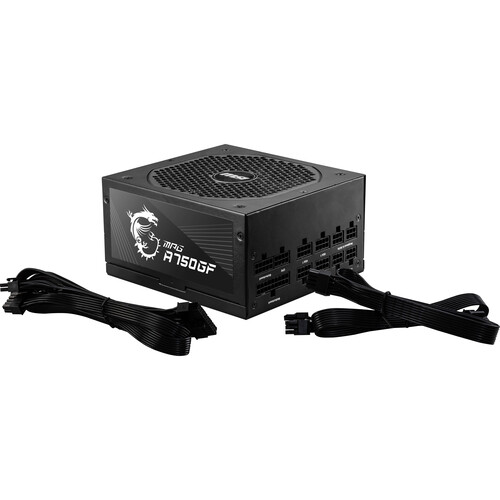

The MPG A750GF 80 Plus Gold Modular Power Supply from MSI is an efficient and durable power supply, made for the custom builder who wants to utilize the performance of high-powered graphics cards and motherboards. MSI incorporated a modular design, allowing you to connect only the cables that you need, removing unnecessary wires and simplifying your overall build. Flat black cable design makes organization easier and less obstructive, promoting airflow through your case. The 100% Japanese 105° C capacitors and alloy copper terminals provide electrical stability and enhanced quality backed by a limited 10-year warranty.
Description
Additional information
| Weight | 6.5 lbs |
|---|---|
| Dimensions | 11.5 × 8.3 × 5.4 in |

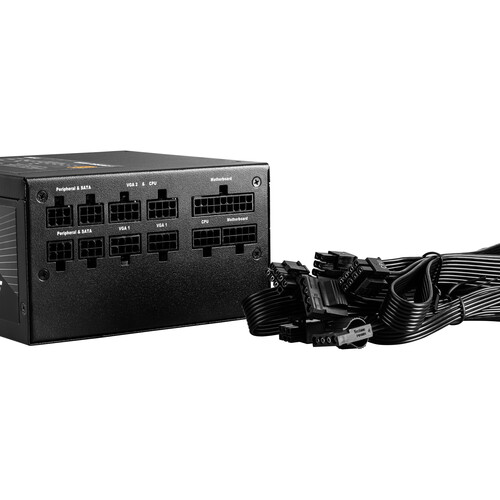

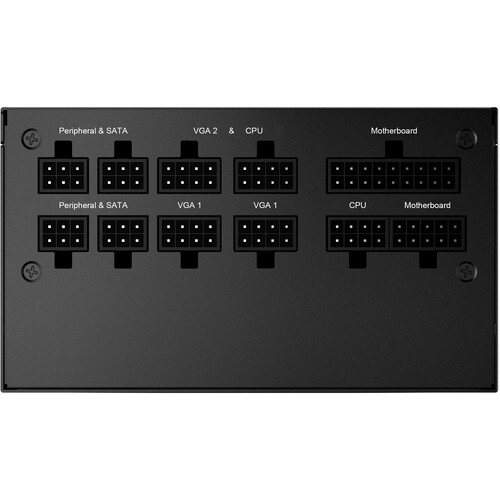

| Total Connectors | 1 x 20+4-Pin ATX Motherboard<br />2 x 4+4-Pin EPS CPU<br />6 x 6+2-Pin PCIe<br />8 x 15-Pin SATA<br />4 x 4-Pin Peripheral / Molex<br />1 x 4-Pin Floppy |
| Peak Power | 750 W |
| Form Factor | ATX |
| Fan Size | 140 mm |
| Efficiency | 87% at 20% Load<br />90% at 50% Load<br />87% at 100% Load |
| Active Power Factor Correction | Yes |
| Efficiency Rating | 80 PLUS Gold |
| Ripple and Noise | +3.3 V: 40 mV, +5 V: 40 mV, +12 V: 60 mV, -12 V: 50 mV, +5 Vsb: 50 mV |
| Voltage Regulation | +3.3 V: ± 4%, +5 V: ± 4%, +12 V: ± 4%, -12 V: ± 10%, +5 Vsb: ± 4% |

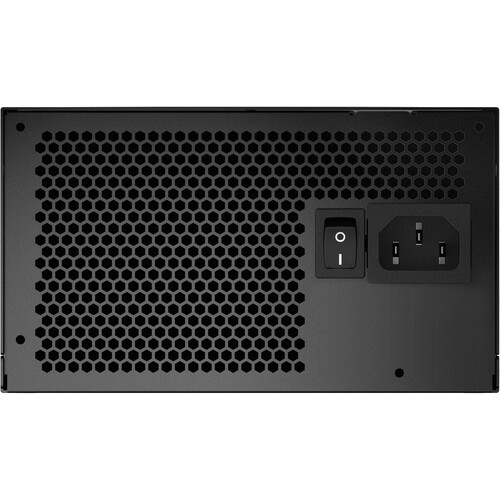

| AC Input Power | 100 to 240 VAC, 50 / 60 Hz |
| Max Power for -12 V | 750 W |
| Cable Design | Modular |
| Max Load for +5 Vsb | 2.5 A |
| Max Power for +5 Vsb | 750 W |
| Max Load for +5 V | 22 A |
| Max Load for +3.3 V | 22 A |
| Combined Power for +3.3/+5 V | 120 W |
| Max Load for -12 V | 0.3 A |
| Combined Power for +12 V | 750 W |
| Number of +12 V Rails | 1 |
| Total Wattage | 750 W |
| Protection | Over-Current Protection, Over-Power Protection, Over-Temperature Protection, Over-Voltage Protection, Short-Circuit Protection, Under-Voltage Protection |
