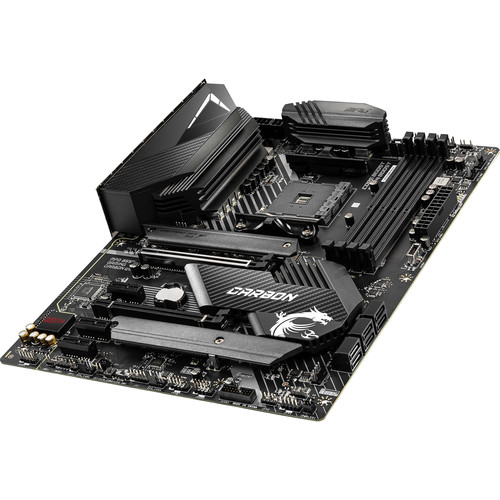

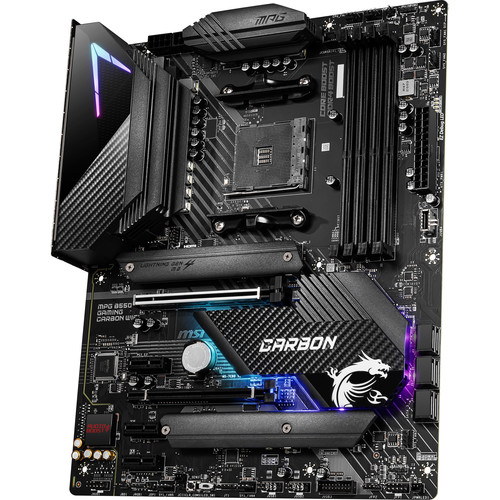

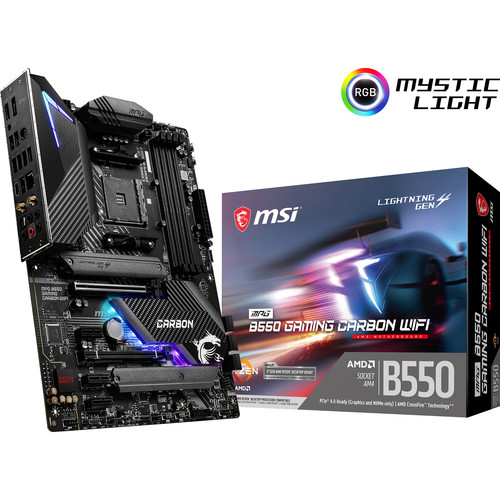

MSI MPG B550 GAMING CARBON WIFI AM4 ATX Motherboard – Wi-Fi 6, RGB, High-Performance Gaming
$161.99
High-performance MSI MPG B550 GAMING CARBON WIFI motherboard with Wi-Fi 6, RGB headers, and AMD Ryzen compatibility
In stock
Description
Create a sleek, custom gaming PC with the MPG B550 GAMING CARBON WIFI AM4 ATX Motherboard from MSI. This high-performance motherboard is ideal for builders who want to utilize high-end gaming components, advanced cooling systems, and wireless connectivity.
Featuring an AM4 socket and B550 chipset, it’s compatible with various AMD Ryzen processors for exceptional gaming performance. The motherboard includes four dual-channel DDR4 memory slots, six SATA III ports, and two M.2 slots for ample storage. With PCIe 4.0/3.0 x16, PCIe 3.0 x16, and three PCIe 3.0 x1 slots, you can install multiple graphics and utility cards. Enjoy wireless network access with Wi-Fi 6 (802.11ax) and connect devices with Bluetooth 5.1 for a seamless experience. This motherboard is designed for Windows 10 (64-bit) operating systems.
Additional information
| Weight | 4.31 lbs |
|---|---|
| Dimensions | 13.6 × 10.7 × 3.4 in |
| Chipset | AMD B550 |
| Expansion Slots | 1 x PCIe 4.0 x16<br />1 x PCIe 3.0 x16<br />3 x PCIe 3.0 x1 |
| Supported Operating Systems | Windows 10 (64-Bit) |
| Module Support | 1 E Key M.2 |
| Wi-Fi | Wi-Fi 6 (802.11ax) |
| Bluetooth | 5.1 |
| Audio Codec | Realtek ALC1200 (7.1-Channel) |
| I/O Connection Headers | USB 3.1 / USB 3.2 Gen 1 |
| Diagnostics | Clear CMOS |
| LED Header | 4 x RGB |
| Security | Chassis Intrusion, TPM Module |
| Power Connectors | 1 x 24-Pin Mainboard<br />1 x 8-Pin ATX<br />1 x 4-Pin ATX |
| Liquid Cooling | 1 x 4-Pin Pump |
| Air Cooling | 1 x 4-Pin CPU<br />6 x 4-Pin System |
| Multi-GPU Support | 2-Way AMD CrossFireX |
| RAID Support | RAID 0, 1, 10 (SATA)<br />RAID 0, 1 (M.2) |
| CPU Socket | AM4 |
| U.2 | None |
| M.2 | 1 x M Key 2242, 2260, 2280, 22110 (PCIe 4.0 x4, PCIe 3.0 x4)<br />1 x M Key 2242, 2260, 2280 (PCIe 3.0 x4) |
| SATA | 6 x SATA III |
| ECC Support | Non-ECC, ECC Unbuffered |
| Channel Architecture | Dual Channel |
| Maximum Capacity | 128 GB |
| Memory Support | DDR4 1866, 2133, 2400, 2667, 2800, 2933, 3000, 3066, 3200, 3466, 3600, 3733, 3866, 4000, 4133, 4266, 4400, 4466, 4533, 4600, 4800, 4866, 5000, 5100 MHz |
| Memory Slots | 4 x 288-Pin |
| Buttons | BIOS Flashback |
| Wi-Fi Antenna | 2 x Connector |
| PS/2 | 1 x Combo |
| Ethernet / Controller | 1 x 2.5Gigabit |

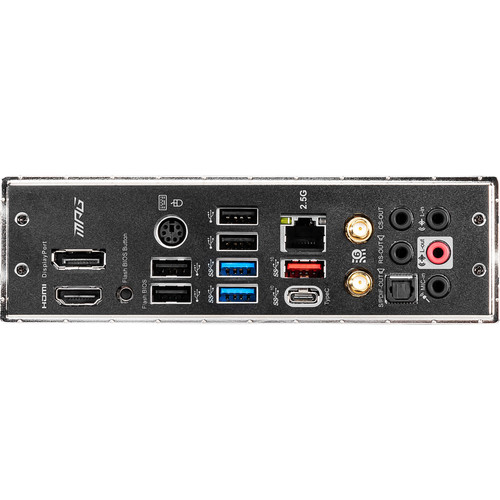

| Display | 1 x DisplayPort <br />1 x HDMI |
| USB | 1 x USB 3.1 / USB 3.2 Gen 1 Header (Supports 1 USB Type-C Port)<br />1 x USB 3.1 / USB 3.2 Gen 1 Header (Supports 2 USB Type-A Port)<br />2 x USB 2.0 Header (Supports 4 USB Type-A Port) |
| Form Factor | ATX |
