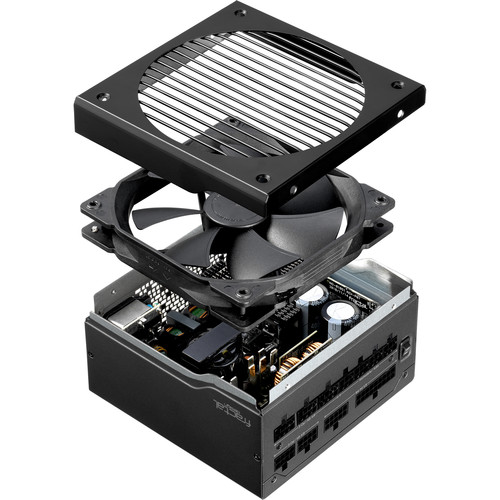

Stay powered up and cooled down with the Ion+ 760P 760W 80 PLUS Platinum Modular Power Supply from Fractal Design. Featuring a 140mm fan, a Zero RPM mode for silent operation, and a single +12V Rail delivering 760W, this ATX power supply is designed to stay cool and quiet while powering your rig. Featuring flat and sleeved fully-modular UltraFlex cables, the Ion+ 760P provides one motherboard, two CPU, six PCIe, and ten SATA connectors, as well as four 4-pin peripheral connectors. Complying to ATX12V 2.4 and EPS12V 2.92 specifications, the Fractal Ion+ Platinum features a lifespan of up to 100,000 hours. In addition to the modular cables and AC power cord, this PSU also comes with a cable storage pouch and a hardware kit with screws and zip ties.
Description
Additional information
| Weight | 7.08 lbs |
|---|---|
| Dimensions | 12.9 × 8.3 × 4.4 in |

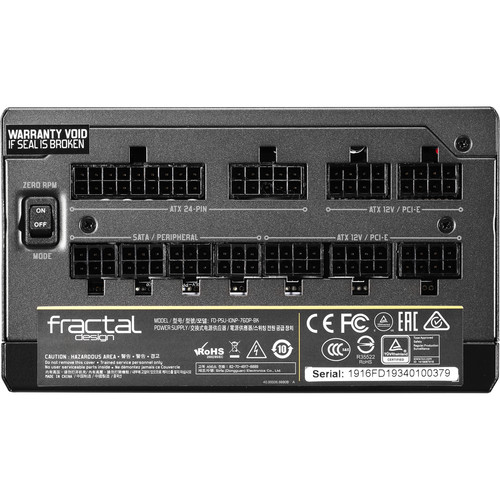

| Total Connectors | 1 x 24-Pin ATX Motherboard<br />1 x 4+4-Pin EPS CPU<br />1 x 8-Pin EPS CPU<br />6 x 6+2-Pin PCIe<br />10 x 15-Pin SATA<br />4 x 4-Pin Peripheral / Molex |
| Max Load for +5 V | 22 A |
| Certifications | BSMI, CB, CCC, CE, EAC, FCC, RCM, RoHS, TUV, WEEE, cTUVus, as per Manufacturer |
| Protection | Over-Current Protection, Over-Power Protection, Over-Temperature Protection, Over-Voltage Protection, Short-Circuit Protection, Under-Voltage Protection |
| Compliance | ATX 12 V v2.4, EPS 12 V v2.92 |
| Form Factor | ATX |
| Storage Temperature | 122°F / 50°C |
| Bearing Type | Fluid Dynamic Bearings (FDB) |

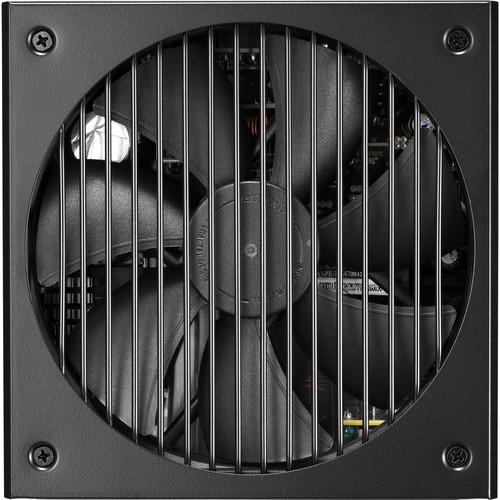

| Fan Size | 140 mm |
| Efficiency Rating | 80 PLUS Platinum |

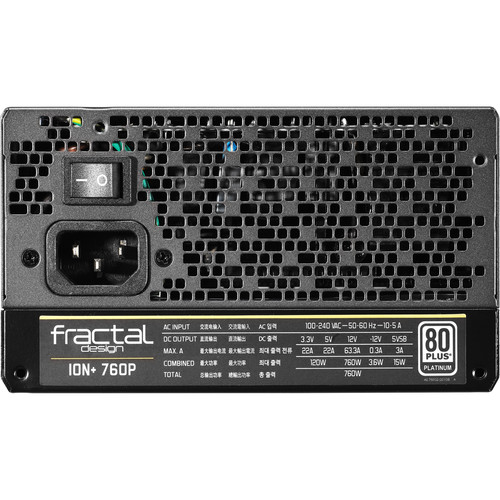

| AC Input Power | 100 to 240 VAC, 50 / 60 Hz at 10 to 5 A |
| Max Load for +5 Vsb | 3 A |
| Max Load for +3.3 V | 22 A |

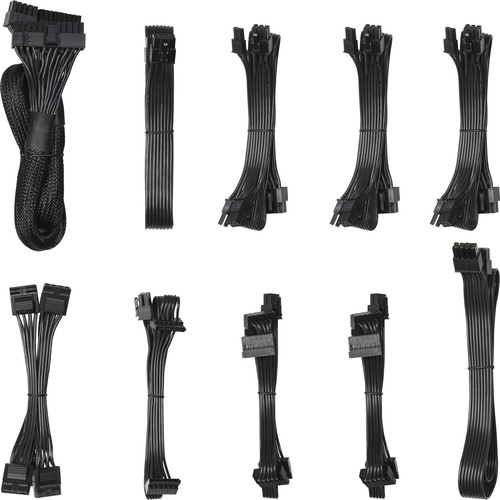

| Cable Design | Flat, Modular, Sleeved |
| Combined Power for +3.3/+5 V | 120 W |
| Max Load for -12 V | 0.3 A |
| Combined Power for +12 V | 760 W |
| Number of +12 V Rails | 1 |
| Total Wattage | 760 W |
| EPS Connector Distances | 27.6" / 700 mm<br />23.6" / 600 mm |
| ATX Connector Distance | 23.6" / 600 mm |
| Peripheral Connector Distances | 15.7" / 400 mm<br />4.7" / 120 mm<br />4.7" / 120 mm<br />4.7" / 120 mm |
| SATA Connector Distances | 15.8" / 400 mm<br />4.7" / 120 mm<br />4.7" / 120 mm<br />4.7" / 120 mm<br />15.8" / 400 mm<br />4.7" / 120 mm<br />4.7" / 120 mm<br />4.7" / 120 mm<br />25.6" / 650 mm<br />4.7" / 120 mm |
| PCIe Connector Distances | 21.6" / 550 mm<br />4.7" / 120 mm<br />21.6" / 550 mm<br />4.7" / 120 mm<br />21.6" / 550 mm<br />4.7" / 120 mm |
| Mean Time Between Failures (MTBF) | 100, 000 Hours |
