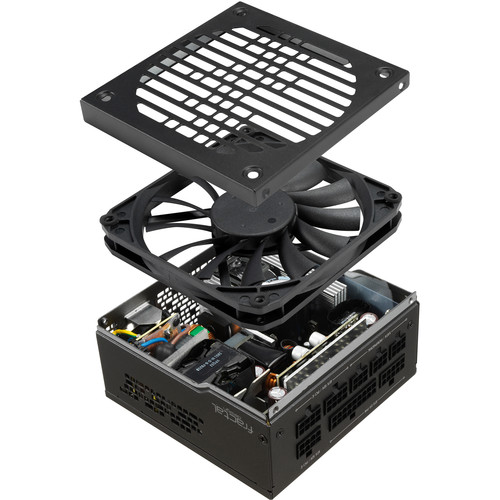

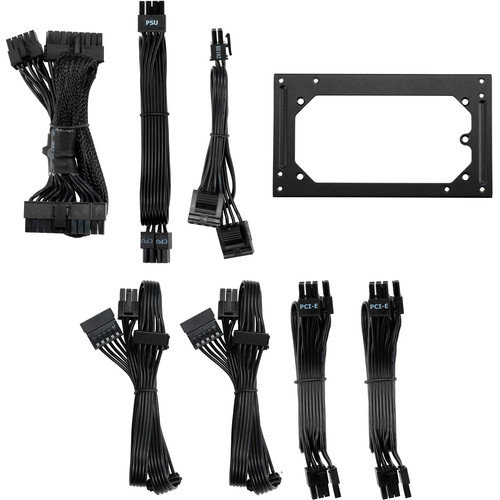

Keep components powered and connected with the Ion SFX 650W 80 PLUS Gold Modular Power Supply from Fractal Design. Providing 650W on a single 12V rail, this PSU sports a 120mm fan and features a semi-passive Zero RPM mode for totally silent operation. In addition to single motherboard and CPU connectors, this fully modular PSU also supplies four PCIe and eight SATA connectors, plus two 4-pin connectors for peripherals. Following Intel SFX12V specifications, the Fractal Ion SFX Gold can fit an ATX mount using the included adapter mount. This power supply also comes with a single motherboard, CPU, and 4-pin peripheral cable as well as two PCIe and SATA cables.
Description
Additional information
| Weight | 4.61 lbs |
|---|---|
| Dimensions | 10.4 × 7.1 × 3.8 in |

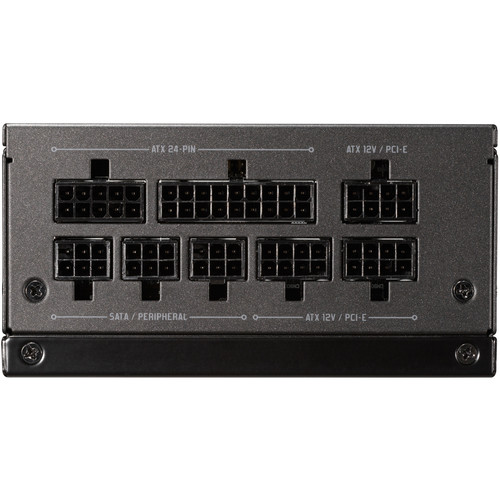

| Total Connectors | 1 x 20+4-Pin ATX Motherboard<br />1 x 4+4-Pin EPS CPU<br />4 x 6+2-Pin PCIe<br />8 x 15-Pin SATA<br />2 x 4-Pin Peripheral / Molex |
| Max Load for +5 V | 20 A |

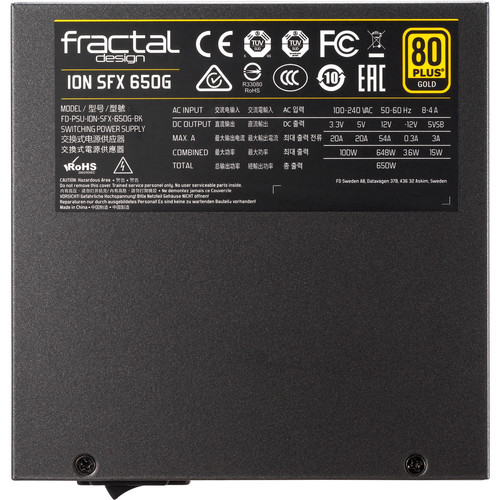

| Certifications | BSMI, CB, CCC, CE, EAC, ErP Lot 6, FCC, RCM, RoHS, TUV, WEEE, cTUVus, as per Manufacturer |
| Protection | Over-Current Protection, Over-Power Protection, Over-Temperature Protection, Over-Voltage Protection, Short-Circuit Protection, Under-Voltage Protection |
| Form Factor | SFX-L |
| Operating Temperature | 104°F / 40°C |
| Fan Life Expectancy | 100, 000 Hours |
| Bearing Type | Fluid Dynamic Bearings (FDB) |

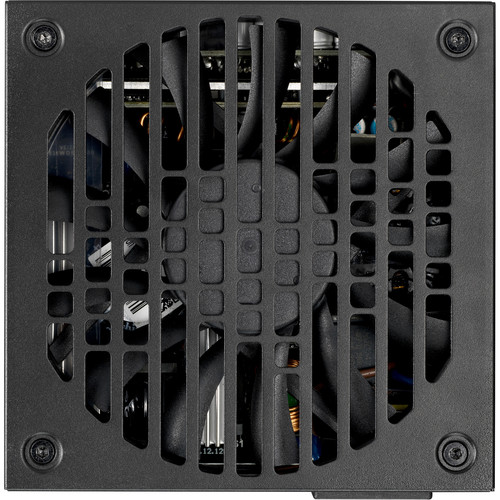

| Fan Size | 120 mm |
| Efficiency Rating | 80 PLUS Gold |

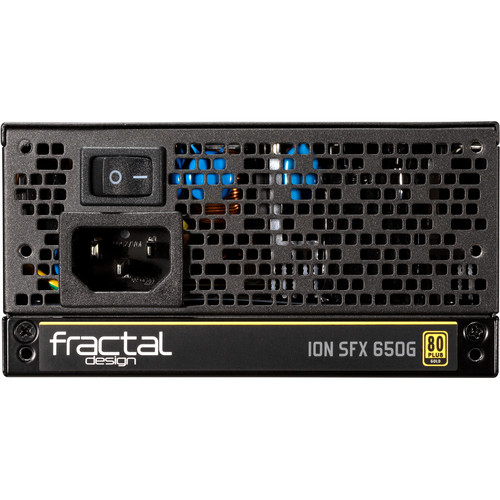

| AC Input Power | 100 to 240 VAC, 50 / 60 Hz at 8 to 4 A |
| Max Load for +5 Vsb | 3 A |
| Max Load for +3.3 V | 20 A |
| Cable Design | Flat, Modular |
| Combined Power for +3.3/+5 V | 100 W |
| Max Load for -12 V | 0.3 A |
| Combined Power for +12 V | 650 W |
| Number of +12 V Rails | 1 |
| Total Wattage | 650 W |
| EPS Connector Distances | 15.7" / 400 mm |
| ATX Connector Distance | 13.8" / 350 mm |
| Peripheral Connector Distances | 11.8" / 300 mm<br />7.9" / 200 mm |
| SATA Connector Distances | 11.8" / 300 mm<br />7.9" / 200 mm<br />7.9" / 200 mm<br />3.9" / 100 mm<br />11.8" / 300 mm<br />7.9" / 200 mm<br />7.9" / 200 mm<br />3.9" / 100 mm |
| PCIe Connector Distances | 15.8" / 400 mm<br />3.9" / 100 mm<br />15.8" / 400 mm<br />3.9" / 100 mm |
| Mean Time Between Failures (MTBF) | 100, 000 Hours |
