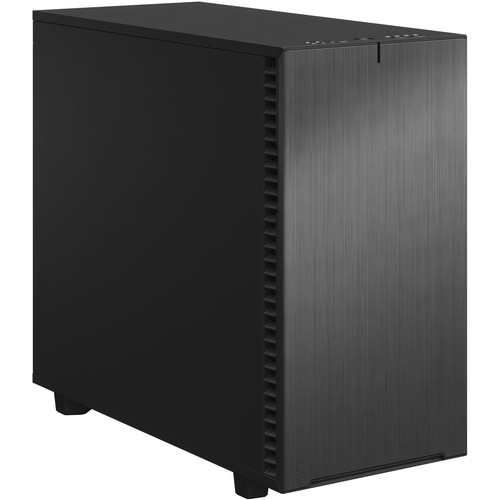

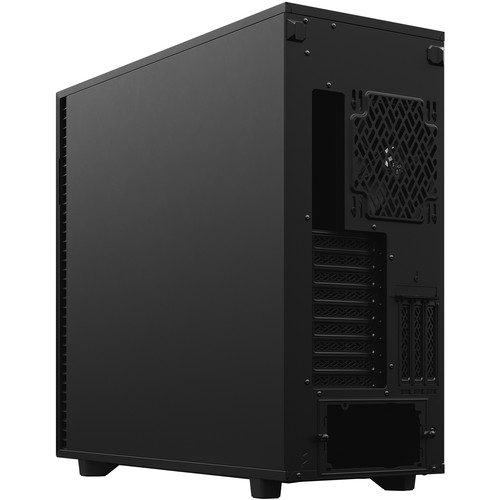

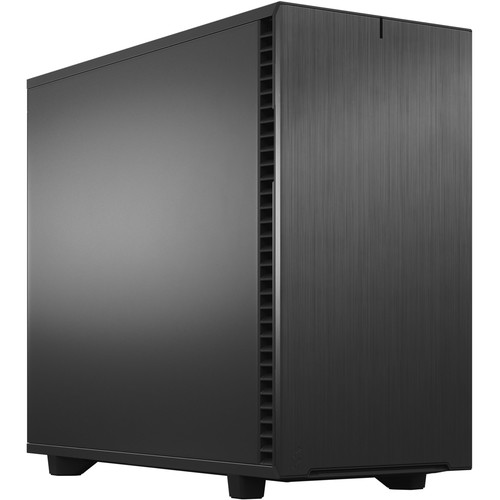

Unleash Your Build’s Potential with the Fractal Design Define 7 XL
Are you ready to take your PC build to the next level? The Fractal Design Define 7 XL Full-Tower Case in black is designed for those who crave space and flexibility. Whether you’re building a dual-CPU rig, need ample drive space, or simply have larger hands, this case provides the room you need to create your dream system.
Key Features:
- Supports EE-ATX, E-ATX, ATX, micro-ATX, mini-ITX, SSI EEB, and SSI CEB motherboards
- Eight 2.5/3.5″ drive bays configurable in 18 different layouts

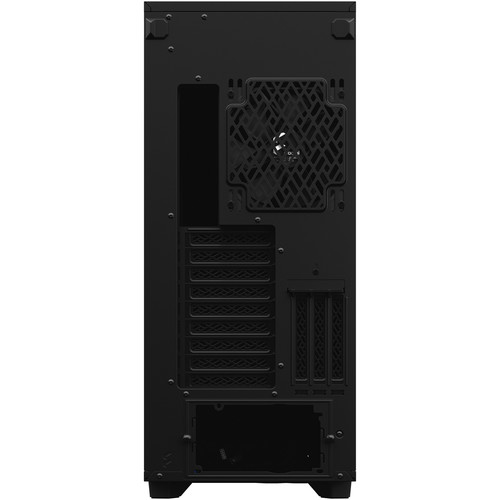

- Nine expansion slots for adapter cards and three vertical slots for side-mounted GPUs
- Accommodates GPUs up to 21.61″ and PSUs up to 9.84″ with HDD cages installed
- Three preinstalled 140mm Dynamic X2 GP-14 fans and mounts for up to six additional 140mm fans

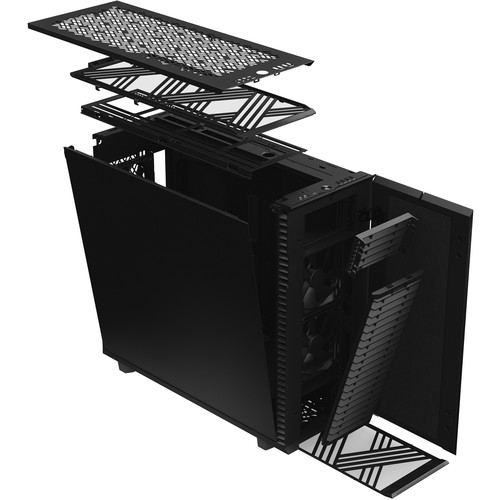

- Nylon filters at top, bottom, and front to reduce dust buildup

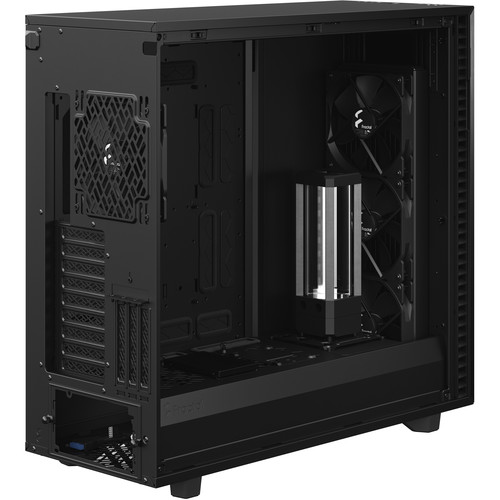

- Radiator support for liquid-cooling systems up to 480mm

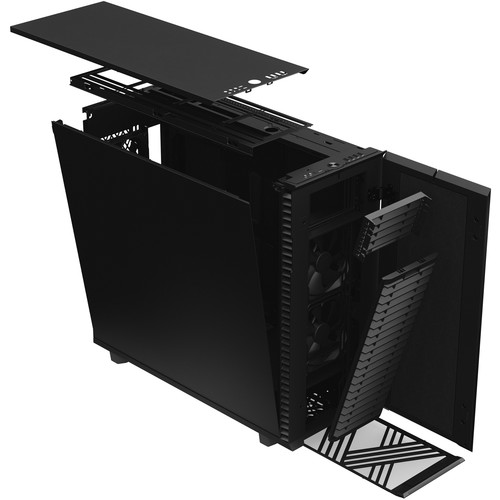

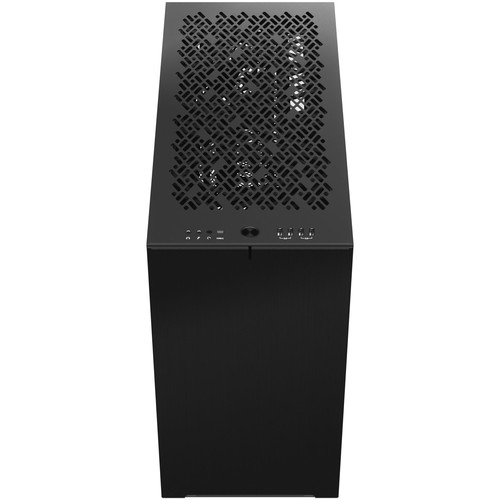

- Sound-dampening materials and ModuVent top panel for optimized airflow or noise reduction
- Front panel with USB 3.1 Gen 2 Type-C, USB 3.1 Gen 1, USB 2.0, and audio ports
This case is perfect for builders who need a spacious and versatile enclosure. The steel frame and side panels provide durability, while the sound-dampening materials ensure a quiet operation. With the ModuVent top panel, you can optimize the case for either increased airflow or reduced noise, depending on your preferences.
The Define 7 XL is designed with flexibility in mind. The eight 2.5/3.5″ drive bays can be configured in 18 different ways, allowing you to customize your storage layout. The case also supports radiators up to 480mm for liquid-cooling systems, making it an excellent choice for high-performance builds.
With its robust build quality, versatile design, and advanced cooling options, the Fractal Design Define 7 XL Full-Tower Case is an ideal choice for anyone looking to build a high-end PC.
Additional information
| Weight | 43.53 lbs |
|---|---|
| Dimensions | 27.4 × 25.3 × 14 in |
| Motherboard Support | ATX, E-ATX, Micro-ATX, Mini-ITX, SSI-CEB, SSI-EEB, EE-ATX |
| Maximum Radiator Size (Front) | 480 mm |
| Dimensions (W x H x D) | 9.45 x 22.28 x 23.78" / 240 x 566 x 604 mm |
| Cable Management Space | 1.18" / 30 mm |
| Material | Steel |
| Windowed Panel | No |
| Display Connections | None |
| Audio Connections | 1 x 3.5 mm Input<br />1 x 3.5 mm Output |
| Connections | 2 x USB Type-A (USB 3.1 / USB 3.2 Gen 1)<br />2 x USB Type-A (USB 2.0)<br />1 x USB Type-C (USB 3.1 / USB 3.2 Gen 2) |
| Filter Locations | Bottom, Front, Top |
| Fan Controller Included | Yes |
| Fans Included (Internal) | None |
| Maximum Radiator Size (Bottom) | 280 mm |
| Maximum Radiator Size (Top) | 480 mm |
| Maximum Radiator Size (Rear) | 120 mm |
| Fans Included (Top) | None |
| External Drive Bays | 2 x 5.25" |
| Fans Included (Side) | None |
| Fans Included (Rear) | 1 x 140 mm |
| Fans Included (Front) | 2 x 140 mm |
| Fan Mounting (Bottom) | 2 x 120 mm<br>Or<br />2 x 140 mm<br> |
| Fan Mounting (Top) | 4 x 120 mm<br>Or<br />3 x 140 mm<br> |
| Fan Mounting (Rear) | 1 x 120 mm<br>Or<br />1 x 140 mm<br> |
| Fan Mounting (Front) | 4 x 120 mm<br>Or<br />3 x 140 mm<br> |
| Maximum PSU Length | 9.84" / 250 mm |
| Supported PSU Size | ATX |
| CPU Cooler Height | 7.28" / 185 mm |
| Maximum GPU Length | 21.61" / 549 mm |
| Expansion Slots | 9 x Full Height + 3 |

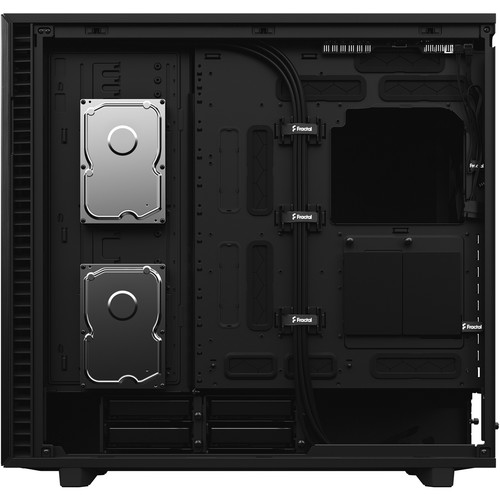

| Additional Drive Mounting | 2 x 2.5" (Motherboard Tray)<br>Or<br />2 x 2.5" (Side)<br> |
| Internal Drive Bays | 8 x 2.5/3.5"<br> |
| Warranty Length | Limited 2-Year Warranty |
