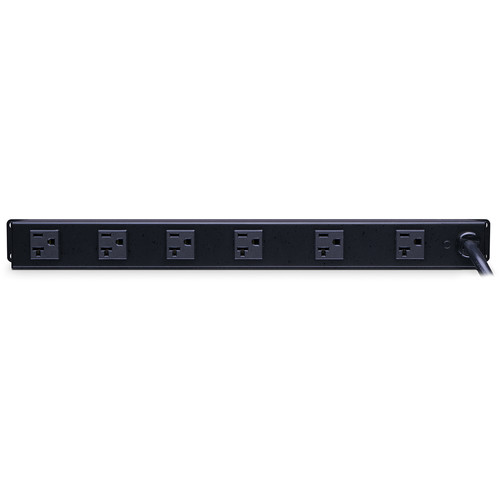

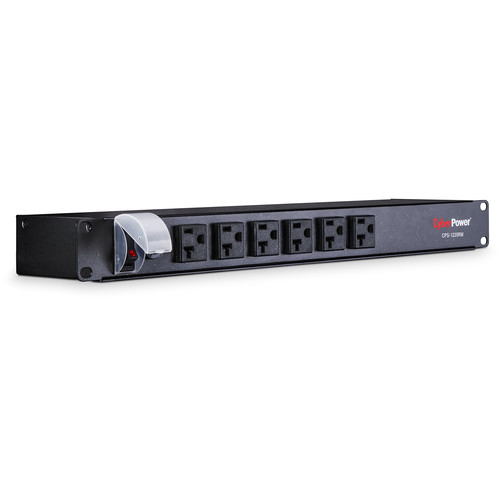

Designed for data centers and other electrically demanding applications, such as VoIP phone systems, network closets, and industrial environments, the CPS1220RM Basic Power Distribution Unit from CyberPower provides an output of 100-125V at 20A. It distributes that power to 12 NEMA 5-20R outlets (6 front and 6 rear) from a single 15′ NEMA 5-20P input with unfiltered electrical passthrough. The CPS1220RM has a rugged, industrial-grade metal housing and can be mounted either horizontally or vertically with its 1 RU form factor. It is ETL/RoHS certified and was built with a cord retention tray. Protection is provided by a limited 3-year warranty.
Description
Additional information
| Weight | 6 lbs |
|---|---|
| Dimensions | 22 × 16 × 7 in |
| Outlets | 12 x NEMA 5-20R |
| Certifications | RoHS, UL, as per Manufacturer |
| Cable Management | Yes |
| Material of Construction | Metal |
| Cable Length | 15' / 4.57 m |
| Storage Temperature | 5 to 113°F / -15 to 45°C |
| Operating Humidity | 0 to 95% |
| Operating Temperature | 32 to 104°F / 0 to 40°C |
| Circuit Breaker | No |
| Wall Plug Type | NEMA L5-20P (Straight) |
| Rated Current | 20 A |
| AC Input Power | 100 to 125 VAC, 60 Hz |
| RJ11 | None |
| BNC Coaxial | None |
| Ethernet | None |
| USB Ports | None |
| Dimensions (L x W x H) | 4.8 x 17.3 x 1.8" / 12.2 x 43.9 x 4.6 cm |
