Corsair CX Series CX650M 650W 80 PLUS Bronze Semi-Modular ATX Power Supply

Corsair CX Series CX650M 650W 80 PLUS Bronze Semi-Modular ATX Power Supply

Name: Corsair CX Series CX650M 650W 80 PLUS Bronze Semi-Modular ATX Power Supply
Brand: Corsair
SKU: BH1611789
Price: 55.50 USD
Availability: InStock

$55.50

In stock

SKU: BH1611789 Category: Desktop Components Brand: Corsair

Description

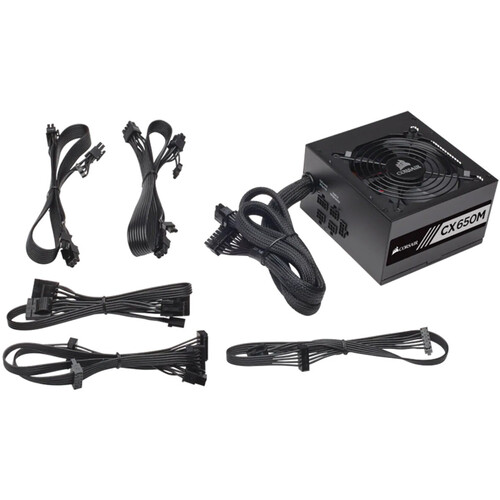

Keep the juice flowing to your components with the CX Series CX650M 650W 80 PLUS Bronze Semi-Modular ATX Power Supply from Corsair. Utilizing an ATX12V v2.4 or EPS 2.92 form factor, this 550W ATX power supply features a single +12V rail. In addition to a motherboard and CPU connector, the CX550M’s semi-modular cable design also provides two PCIe, six SATA III, and three 4-pin peripheral connectors, as well as single floppy connector. A thermal-controlled 120mm cooling fan ensures quiet operation at small or medium loads.

Additional information

Weight	5.2 lbs
Dimensions	10.5 × 7.2 × 3.9 in

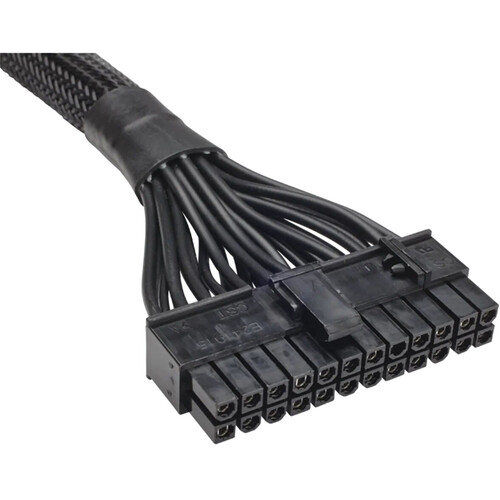

Total Connectors	1 x 20+4-Pin ATX Motherboard<br />1 x 4+4-Pin EPS CPU<br />2 x 6+2-Pin PCIe<br />3 x 4-Pin Peripheral / Molex<br />6 x 15-Pin SATA<br />1 x 4-Pin Floppy
Max Power for +5 Vsb	15 W
Protection	Over-Power Protection, Over-Temperature Protection, Over-Voltage Protection, Short-Circuit Protection, Under-Voltage Protection
Compliance	ATX 12 V v2.4
Form Factor	ATX PS/2
Fan Size	120 mm
Efficiency Rating	80 PLUS Bronze
AC Input Power	100 to 240 VAC, 50 / 60 Hz at 10 to 5 A
Max Power for -12 V	9.6 W
Max Load for +5 Vsb	3 A
Max Load for +5 V	20 A
Cable Design	Semi-Modular
Max Load for +3.3 V	20 A
Combined Power for +3.3/+5 V	120 W
Max Load for -12 V	0.8 A
Combined Power for +12 V	650 W
Number of +12 V Rails	1
Total Wattage	650 W
EPS Connector Distances	25.6" / 650 mm
ATX Connector Distance	24" / 610 mm
Certifications	BSMI, CB, CCC, CE, FCC, RCM, RoHS, TUV, WEEE, cTUVus, as per Manufacturer
