Description

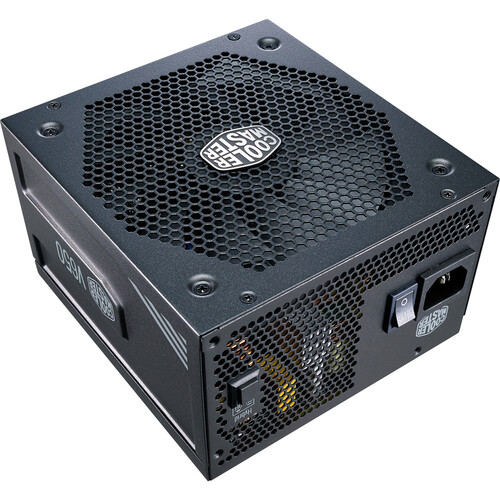

Cooler Master V650 Gold V2: Reliable Power for Your System

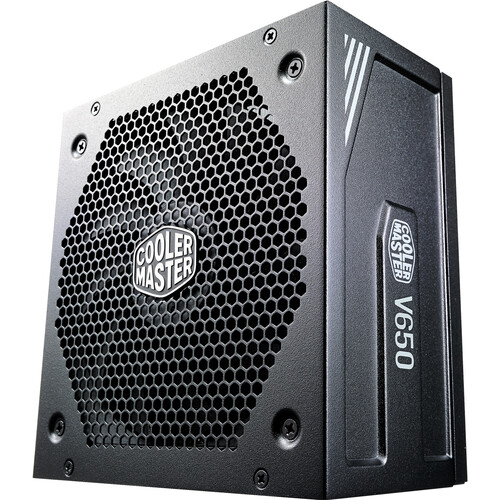

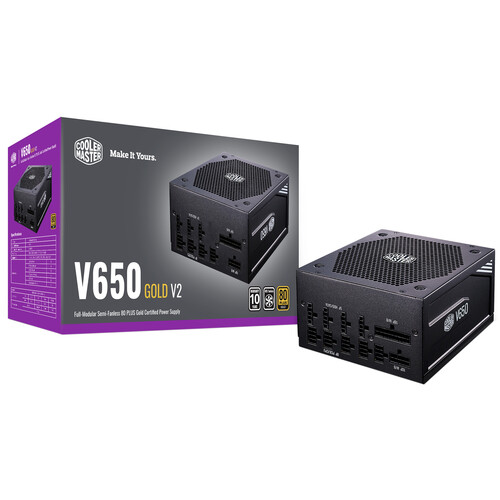

Ensure a steady and reliable flow of power to your computer with the V650 Gold V2 650W 80 PLUS Gold Modular Power Supply from Cooler Master. Ideal for computer builders and tech enthusiasts, this black-colored unit delivers up to 650W of power across a single +12V rail, boasting an 80 PLUS Gold energy efficiency rating of up to 90% under typical loads.
Key Features
- 650W power output across a single +12V rail

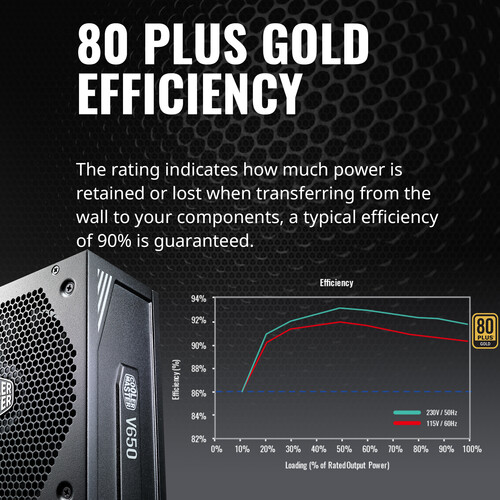

- 80 PLUS Gold certified for up to 90% energy efficiency

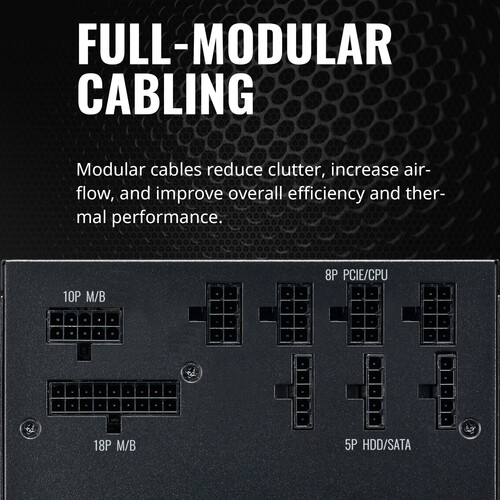

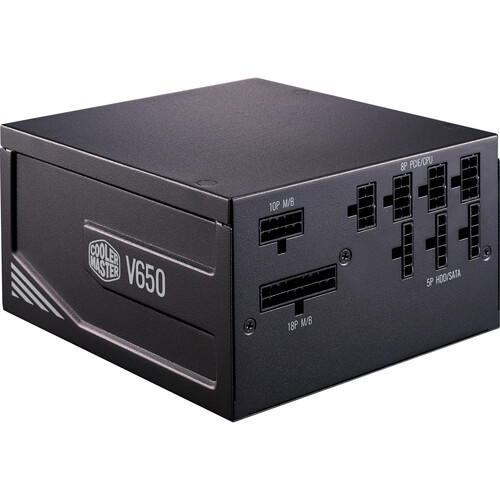

- Modular cables for reduced clutter and improved airflow
- Includes 24-pin main, 4+4-pin EPS, and 8-pin EPS connectors
- Eight 15-pin SATA, four 6+2-pin PCI-e, and four 4-pin peripheral connectors

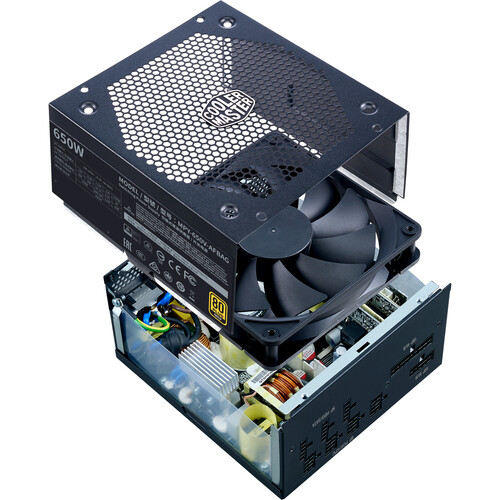

- 135mm fan with max speed of 1500 rpm for optimal cooling

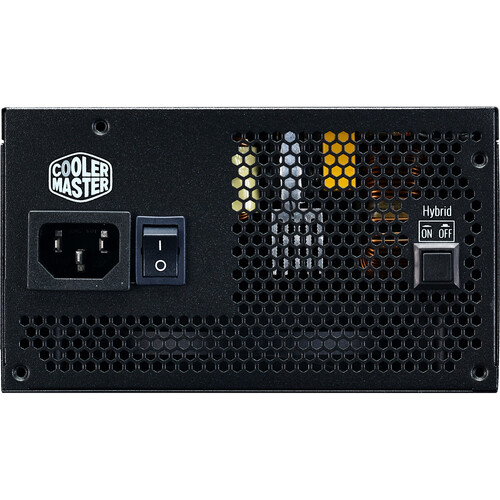

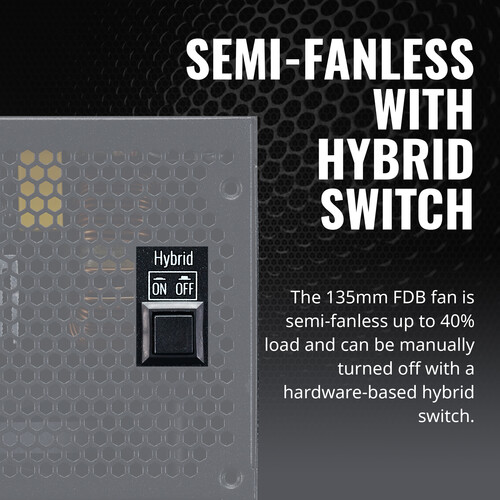

- Fan can be manually configured to shut off under low loads (below 40%) for silent operation
The Cooler Master V650 Gold V2 is designed to provide reliable power while minimizing cable clutter and maximizing airflow within your system. Its modular design allows you to use only the cables you need, making it easier to manage your system’s power requirements. With its high efficiency and flexible connectivity options, this power supply is perfect for building a high-performance computer.
By choosing the Cooler Master V650 Gold V2 650W 80 PLUS Gold Modular Power Supply, you’re investing in a high-quality component that will help ensure the stability and performance of your computer system.
Additional information
| Weight | 6 lbs |
|---|---|
| Dimensions | 12 × 8 × 5.1 in |
| Total Connectors | 1 x 24-Pin ATX Motherboard<br />1 x 4+4-Pin EPS CPU<br />1 x 8-Pin EPS CPU<br />8 x 15-Pin SATA<br />4 x 4-Pin Peripheral / Molex<br />4 x 6+2-Pin PCIe |
| AC Input Power | 100 to 240 VAC, 50 / 60 Hz at 4.5 to 9 A |
| Protection | Over-Current Protection, Over-Power Protection, Over-Temperature Protection, Over-Voltage Protection, Short-Circuit Protection, Under-Voltage Protection |
| Compliance | ATX 12 V v2.52 |
| Form Factor | ATX |
| Operating Temperature | 32 to 122°F / 0 to 50°C |
| Noise Level | 0 to 32.1 dBA |

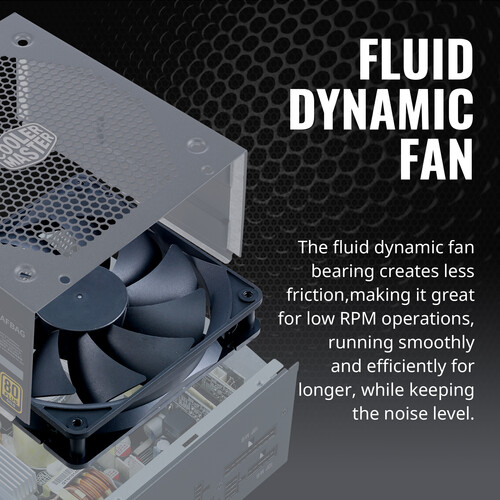

| Bearing Type | Fluid Dynamic Bearings (FDB) |
| Fan Speed | 1500 rpm |
| Fan Size | 135 mm |
| Power-Good Signal | 100 to 500 ms |
| Hold up Time | 17 ms |
| Efficiency | 90% |
| Active Power Factor Correction | Yes |
| Efficiency Rating | 80 PLUS Gold |

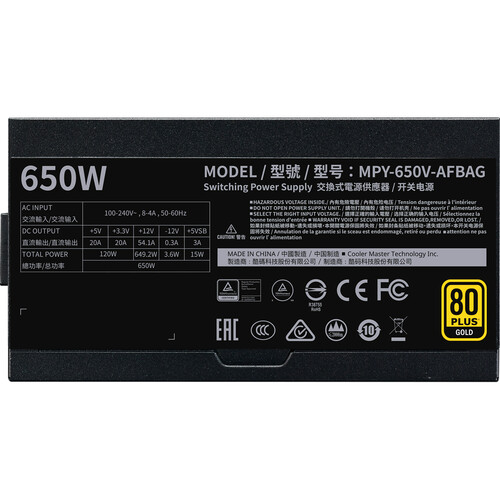

| Max Power for -12 V | 3.6 W |
| Cable Design | Modular |
| Max Load for +5 Vsb | 3 A |
| Max Power for +5 Vsb | 15 W |
| Max Load for +5 V | 20 A |
| Max Load for +3.3 V | 20 A |
| Combined Power for +3.3/+5 V | 130 W |
| Max Load for -12 V | 0.3 A |
| Combined Power for +12 V | 648 W |
| Number of +12 V Rails | 1 |
| Total Wattage | 650 W |

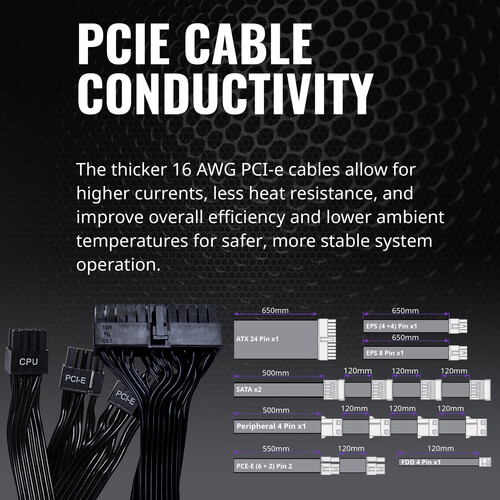

| EPS Connector Distances | 25.6" / 650 mm |
| ATX Connector Distance | 25.6" / 650 mm |
| Peripheral Connector Distances | 19.7" / 500 mm<br />4.7" / 120 mm<br />4.7" / 120 mm<br />4.7" / 120 mm |
| SATA Connector Distances | 19.7" / 500 mm<br />4.7" / 120 mm<br />4.7" / 120 mm<br />4.7" / 120 mm |
| PCIe Connector Distances | 21.7" / 550 mm<br />4.7" / 120 mm |
| Mean Time Between Failures (MTBF) | 100, 000 Hours |
