Description
High-Performance CAT5e Assembly Cable

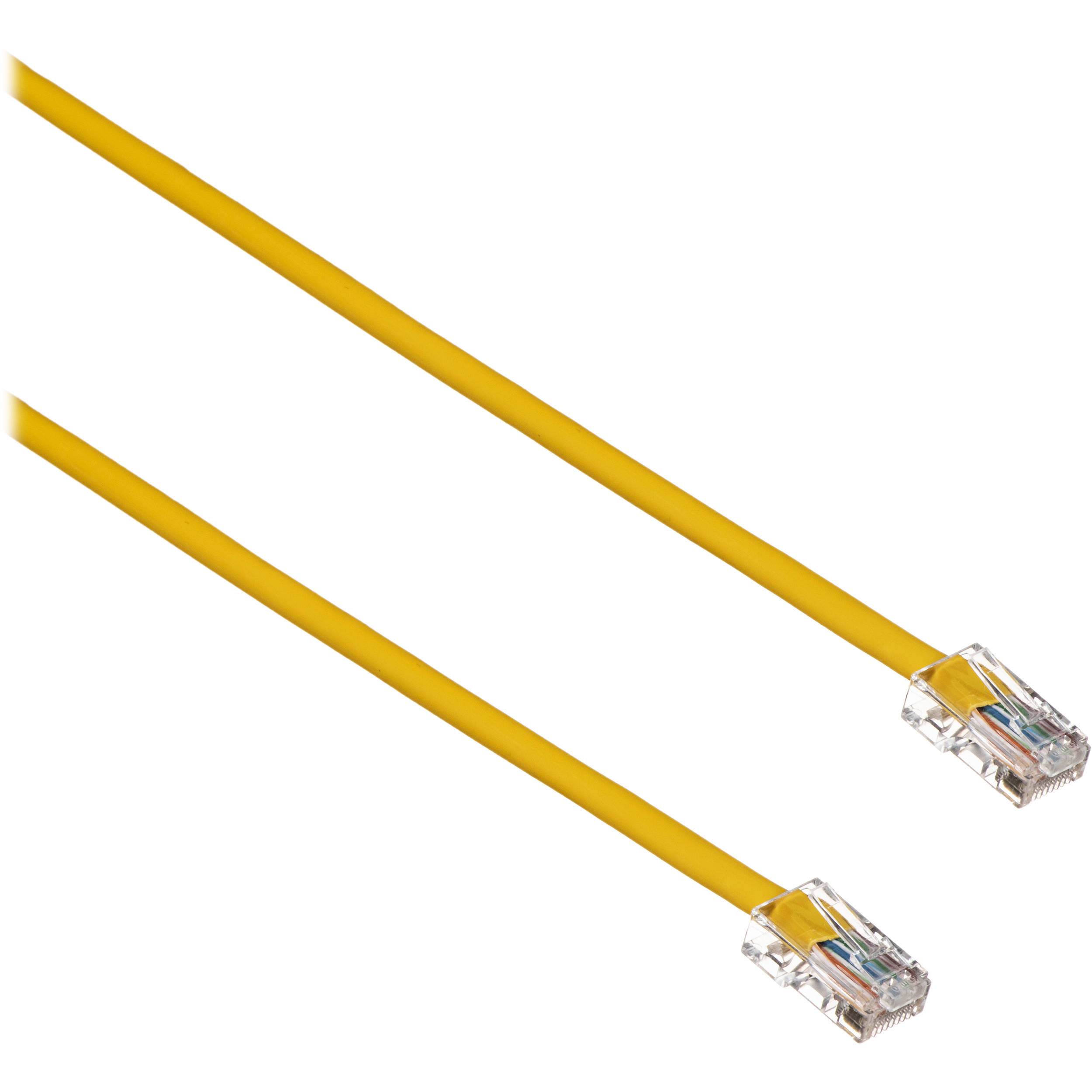

The Comprehensive CAT5e 350 MHz Assembly Cable is designed for enhanced Category 5 high-speed cabling, ideal for distributing data, voice, and video in advanced fast Ethernet and gigabit computer networks. This 7-foot cable is engineered to handle bandwidth-intensive applications up to 350 MHz, ensuring reliable performance for demanding network requirements.
Key Features:
- High Bandwidth: Supports up to 350 MHz for high-speed data transfer.
- Cat 5e Compliant: Meets TIA/EIA standards for lower impedance and structural return loss.
- Optimized Design: Shortened body plug without a boot minimizes Near-End Crosstalk.
- Color-Coded: Yellow PVC jacket for easy network installation organization.
This CAT5e cable is perfect for businesses and individuals requiring a reliable, high-speed connection for their network infrastructure. With its robust design and adherence to industry standards, it ensures a stable and efficient data transfer experience. Whether for office networks, home setups, or data centers, this cable provides the performance and durability needed to support modern networking demands.
Additional information
| Weight | 0.15 lbs |
|---|---|
| Dimensions | 5.2 × 5 × 0.2 in |
| Connector 1 | RJ45 male |
| Connector 2 | RJ45 male |
| Conductor | 4 twisted pairs, 24 AWG bare copper stranded cable |
| Performance Grade | Good |
| Bandwidth | Supports voice / data / video distribution applications up to 350 MHz |
| Standards | Meets all Cat5E TIA / EIA standards, verified to EIA / TIA 568B.2 |
| Cable | Style: Assembled connectors, no boot |
| Conductor DC Resistance | 89 Ω/km (maximum) |
| Insulation Resistance | 100 Ω/km (minimum) |
| Material | Connector: Polycarbonate <br>Contact: Copper alloy plated with 50 µ gold |
| Outer Diameter | 0.2" / 5.3 mm |
| Jacket | PVC |
| RoHS Compliant | Yes |
