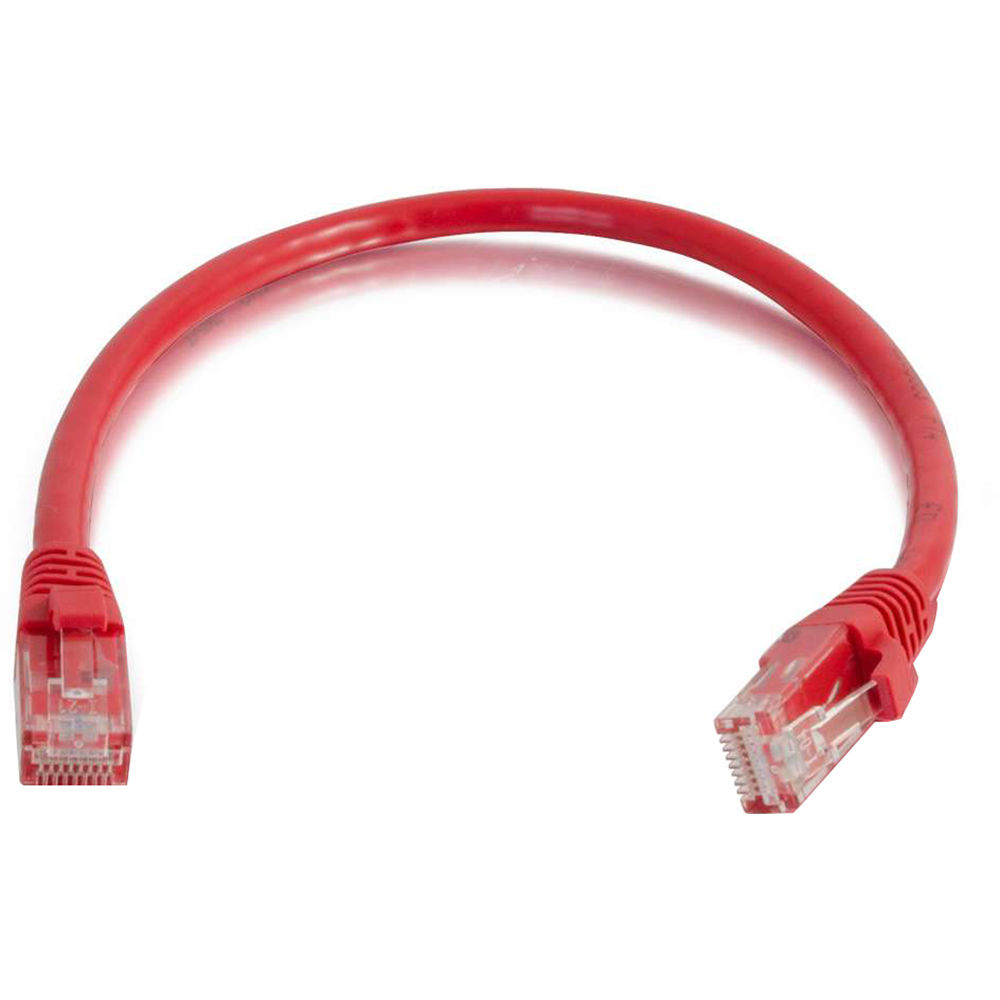

For fast Ethernet and Gigabit computer networks that require bandwidth-intensive voice, data, or video distribution applications. Meets all Cat6 TIA/EIA standards, and drastically reduces both impedance and structural return loss (SRL). Each of the individual pairs is bonded together to help maintain the twist-spacing throughout the line right up to the termination point. Constructed from high quality copper cable, this design minimizes Near-End Crosstalk (NEXT) levels. The molded, snagless boot prevents unwanted cable snags during installation and provides extra strain relief.
Snagless design protects clips when plugging and unplugging.
Available in 10 colors to color code your network and in lengths up to 150ft.
Description
Additional information
| Weight | 0.2 lbs |
|---|---|
| Dimensions | 4.9 × 4.75 × 1.95 in |
| Network Cable Type | Patch cable – CAT 6 |
| Features | Snagless, stranded, minimized Near-End Crosstalk (NEXT), reduced structural return loss (SRL) |
| Service & Support | Limited lifetime warranty |
| Compliant Standards | RoHS, TIA/EIA-568-B.2-1 |
| Connector (Second End) | RJ-45 – male |
| CONNECTOR | RJ-45 – male |
| Color | Red |
| Length | 6 ft |
| Plated Connector | Gold |
| Technology | UTP |
| Impedance | 100 Ohm |
| Pairs per Cable | 4 pairs |
| Wires per Cable | 8 wires |
| American Wire Gauge (AWG) | 24 |
| Jacket Material | PVC |
| Wiring Scheme | T568B |
| Max Operating Temperature | 140 °F |
