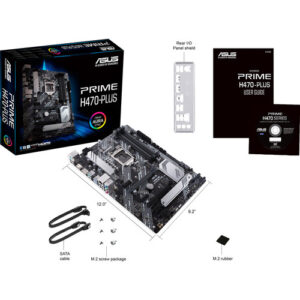

The ASUS Prime H470-PLUS/CSM LGA 1200 ATX Motherboard is designed around the Intel H470 chipset, supporting 10th Gen Intel Core, Pentium Gold, and Celeron processors with an LGA 1200 socket. It has four memory slots, supporting up to 128GB of dual-channel DDR4 RAM, which can run up to 2933 MHz. There are six SATA III ports and two M.2 slots for storage. This motherboard features an ATX form factor, allowing for use in mid-tower and full tower cases. Other integrated features include Realtek RTL8111H Gigabit Ethernet and RealTek ALC887 8-channel high-definition audio.
Description
Additional information
| Weight | 2.37 lbs |
|---|---|
| Dimensions | 13 × 10.5 × 2.2 in |
| Chipset | Intel H470 |
| Expansion Slots | 1 x PCIe 3.0 x16 (x16 mode)<br />1 x PCIe 3.0 x16 (x4 mode)<br />4 x PCIe 3.0 x1 |
| Audio Codec | Realtek ALC887 (8-Channel) |
| I/O Connection Headers | USB 3.1 / USB 3.2 Gen 1 |
| ROM | 128 Mb |
| Diagnostics | Clear CMOS |
| LED Header | 1 x RGB |
| Security | TPM Module |
| Power Connectors | 1 x 24-Pin Mainboard<br />1 x 8-Pin ATX |
| Liquid Cooling | 1 x 4-Pin Pump |
| Air Cooling | 1 x 4-Pin CPU<br />3 x 4-Pin System |
| Multi-GPU Support | 2-Way AMD CrossFireX |
| RAID Support | RAID 0, 1, 5, 10 |
| CPU Socket | LGA 1200 |
| Optane Memory Support | Yes |
| M.2 | 1 x M Key 2242, 2260, 2280, 22110 (PCIe 3.0 x4)<br />1 x M Key 2242, 2260, 2280 (PCIe 2.0 x2, SATA (Unspecified)) |
| SATA | 6 x SATA III |
| Channel Architecture | Dual Channel |
| Maximum Capacity | 128 GB |
| Memory Support | DDR4 2133, 2400, 2666, 2800, 2933 MHz |
| Memory Slots | 4 x 288-Pin |
| PS/2 | 1 x Combo |
| Ethernet / Controller | 1 x Realtek RTL8111H Gigabit |
| Display | 1 x DisplayPort 1.4<br />1 x HDMI 1.4b |
| USB | 2 x USB 3.1 / USB 3.2 Gen 1 Header (Supports 4 USB Type-A Port)<br />2 x USB 2.0 Header (Supports 3 USB Type-A Port) |
| Form Factor | ATX |
