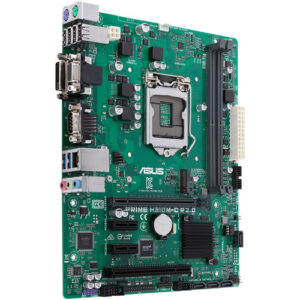

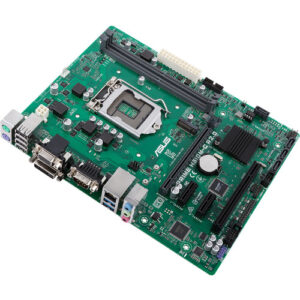

Powered exclusively by 9th Generation Intel processors, the Prime H310M-C R2.0/CSM LGA 1151 Micro-ATX Motherboard from ASUS provides enhanced features to smooth your IT operations, including system protection, 24/7 stability and reliability, and an improved management suite for easier customization. This motherboard also features ASUS Corporate Stable model, which offers complimentary advance replacement and a long lifecycle, plus ASUS Shield, which helps keep hardware and data protected with a self-recovering BIOS and anti-moisture coating. Fixed-position and color-coded connections allow for the identification and assembly to optimize production line installation, while an LPC debug header streamlines troubleshooting.

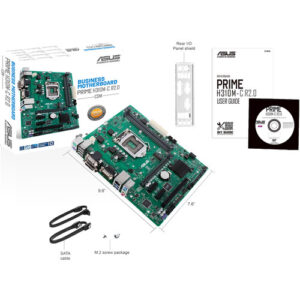

ASUS’ Prime H310M-C R2.0/CSM features a micro-ATX form factor, the H310 chipset, LGA 1151 socket, and supports Windows 10 (64-bit). It supports up to 32GB of 2666, 2400, or 2133 MHz non-ECC, unbuffered memory over two 288-pin DIMM slots. Add storage using the four SATA III ports and one M.2 Socket 3, which supports M.2 2260 and 2280 SATA and PCIe x2 drives, and expand your system with add-in cards via one PCIe 3.0/2.0 x16 slot, two PCIe 2.0 x1 slots, and one PCI slot. Audio is driven by the Realtek ALC887 8-channel HD audio codec and network connectivity is achieved using the Realtek 8111H Gigabit LAN controller. Included are two SATA III 6 Gb/s cables, an I/O shield, and an M.2 screw package.
