Description

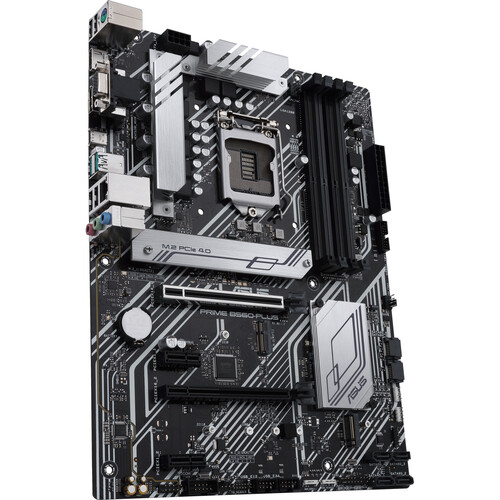

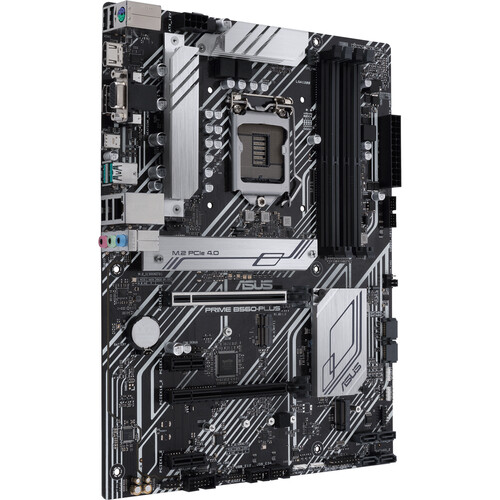

Unlock Enhanced Performance with ASUS PRIME B560-PLUS
Whether you’re a gamer seeking high-speed performance or a business user requiring robust multitasking capabilities, the ASUS PRIME B560-PLUS LGA 1200 ATX Motherboard is designed to meet your needs. Built to harness the power of 11th Gen Intel processors, this motherboard leverages PCIe 4.0 technology to significantly boost M.2 SSD and graphics card performance, ensuring you get the most out of your system.
Key Features:
- LGA 1200 Socket: Compatible with a wide range of 10th and 11th Gen Intel processors for versatile performance options.
- DDR4 RAM Support: Four DDR4 RAM slots allow for up to 128GB of memory, enhancing multitasking and overall system responsiveness.
- Advanced Storage Options: Six SATA III ports and two M.2 PCIe ports provide ample storage expansion possibilities.
- PCIe 4.0 x16 Slot: One PCIe 4.0 x16 slot for high-speed graphics cards, alongside additional PCIe 3.0 slots for other expansion cards.

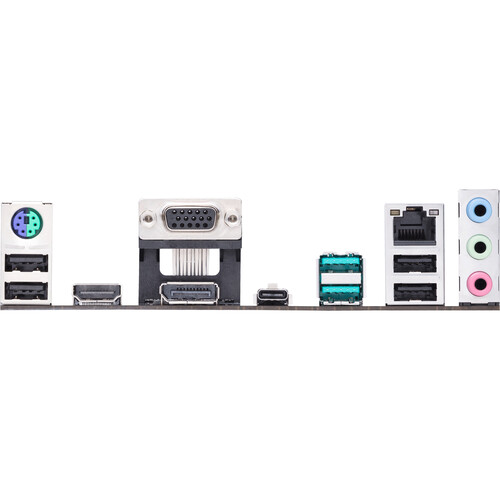

- Comprehensive Connectivity: Includes USB 3.2 Gen 1 and Gen 2 ports, a Gigabit Ethernet port, and HDMI and DisplayPort outputs for integrated graphics.
This motherboard is engineered to provide massive flexibility and performance, making it suitable for a wide range of applications. With its robust feature set and compatibility with the latest Intel processors, the ASUS PRIME B560-PLUS is an ideal choice for building a powerful and future-proof system.
Additional information
| Weight | 2.44 lbs |
|---|---|
| Dimensions | 12.9 × 10.5 × 2.2 in |
| Chipset | Intel B560 |
| Expansion Slots | 1 x PCIe 4.0 x16 (x16 mode)<br />1 x PCIe 3.0 x16 (x4 mode)<br />2 x PCIe 3.0 x1 |
| Supported Operating Systems | Windows 10 (64-Bit) |
| Audio Codec | Realtek ALC897 (7.1-Channel) |
| I/O Connection Headers | USB 3.1 / USB 3.2 Gen 1 |
| ROM | 128 Mb |
| Legacy | 1 x Serial |
| Add-On | 1 x Thunderbolt Card Header |
| Diagnostics | Clear CMOS |
| LED Header | 4 x RGB |
| Security | Chassis Intrusion, TPM Module |
| Power Connectors | 1 x 24-Pin Mainboard<br />1 x 8-Pin ATX |
| Air Cooling | 1 x 4-Pin CPU<br />3 x 4-Pin System |
| Multi-GPU Support | None |
| U.2 | None |
| CPU Socket | LGA 1200 |
| M.2 | 1 x M Key 2242, 2260, 2280, 22110 (PCIe 4.0 x4, PCIe 3.0 x4)<br />1 x M Key 2242, 2260, 2280, 22110 (PCIe 3.0 x4) |
| SATA | 6 x SATA III |
| ECC Support | Non-ECC Unbuffered |
| Channel Architecture | Dual Channel |
| Maximum Capacity | 128 GB |
| Memory Support | DDR4 2133, 2400, 2666, 2800, 2933, 3200, 3333, 3466, 3600, 3733, 4000, 4266, 4400, 4600 MHz |
| Memory Slots | 4 x 288-Pin |
| PS/2 | 1 x Combo |
| Ethernet / Controller | 1 x Intel I219-V Gigabit |
| Display | 1 x DisplayPort <br />1 x HDMI <br />1 x VGA |
| Thunderbolt | None |
| USB | 1 x USB 3.1 / USB 3.2 Gen 1 Header (Supports 2 USB Type-A Port)<br />2 x USB 2.0 Header (Supports 4 USB Type-A Port) |
| Form Factor | ATX |
